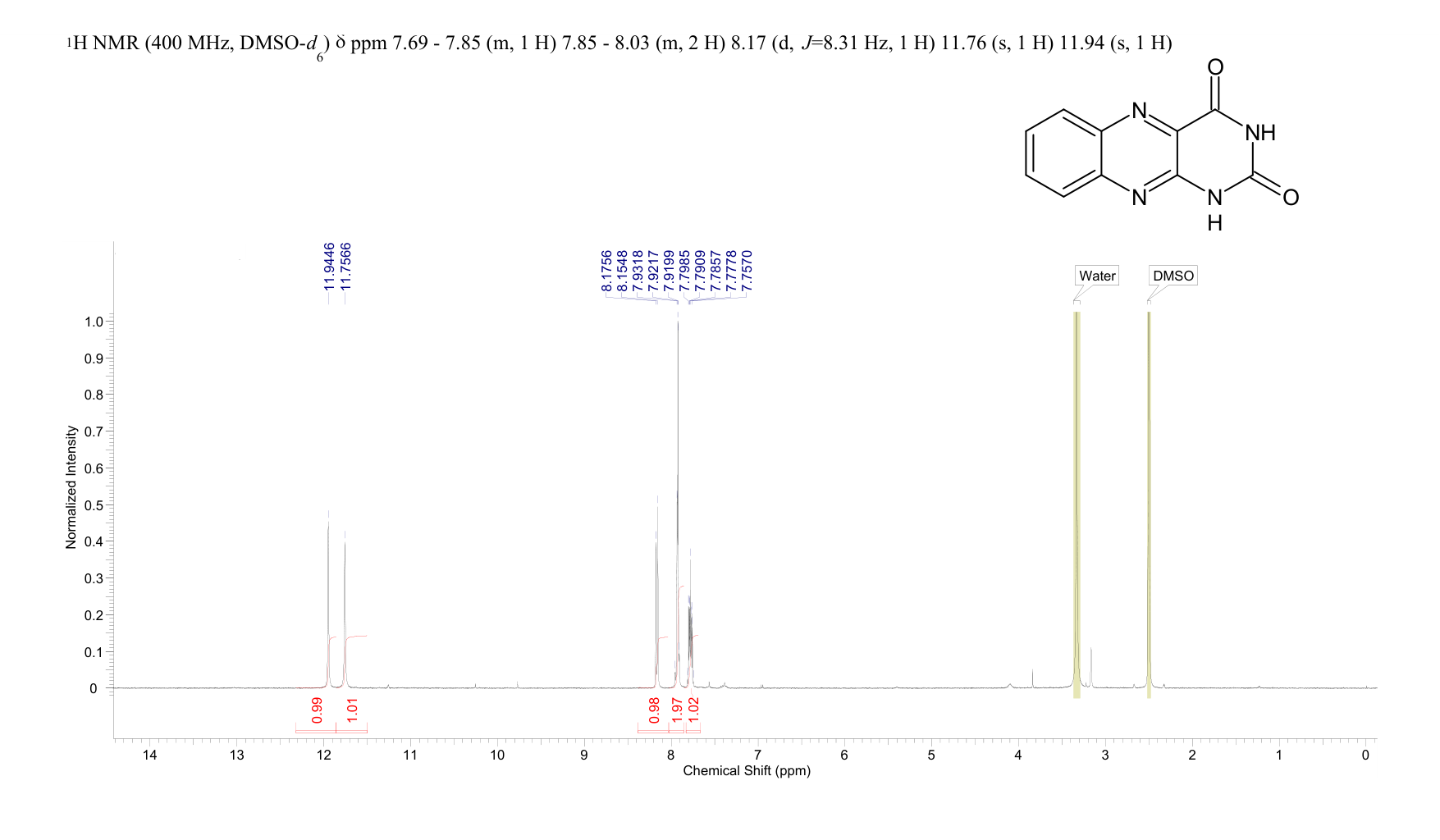

咯肼(490-59-5)核磁圖(1HNMR)
分子式:C10H6N4O2
分子量: 214.18
InChI:
InChIKey:
Smiles:
-

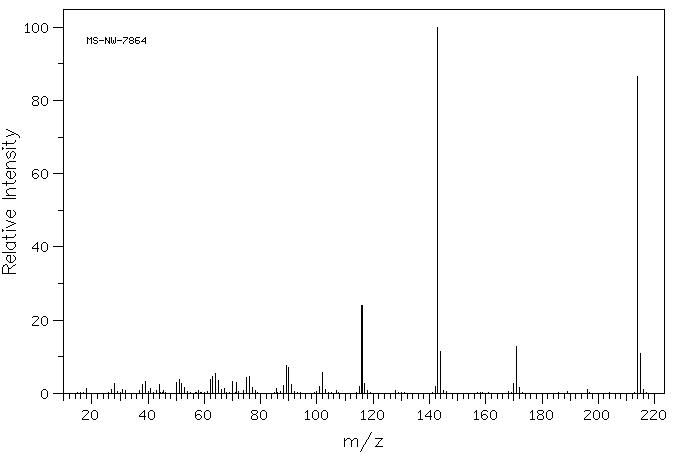

Mass
MS-NW-7864
benzo(g)pteridine-2,4(1H,3H)-dione
C10H6N4O2 (Mass of molecular ion: 214)
Source Temperature: 210 °C
Sample Temperature: 210 °C
Direct, 75 eV
18.0 1.4
27.0 1.0
28.0 2.6
31.0 1.1
38.0 2.4
39.0 3.3
41.0 1.2
44.0 2.3
50.0 3.0
51.0 3.8
52.0 2.6
53.0 1.6
62.0 3.7
63.0 4.7
64.0 5.4
65.0 3.5
66.0 1.0
67.0 1.3
70.0 3.2
71.5 3.1
75.0 4.2
76.0 4.7
77.0 1.7
85.5 1.2
88.0 2.1
89.0 7.6
90.0 7.0
91.0 2.3
101.0 1.9
102.0 5.8
103.0 1.0
115.0 1.9
116.0 23.9
117.0 2.7
142.0 1.8
143.0 100.0
144.0 11.5
170.0 2.6
171.0 12.9
172.0 1.5
196.0 1.0
214.0 86.5
215.0 10.9
216.0 1.0
