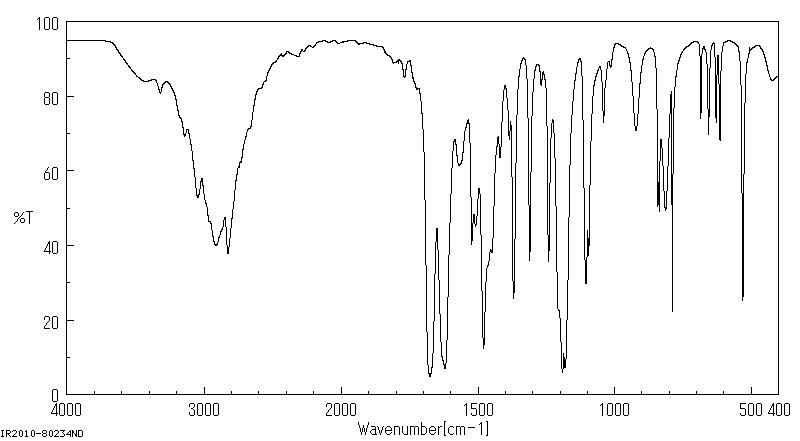

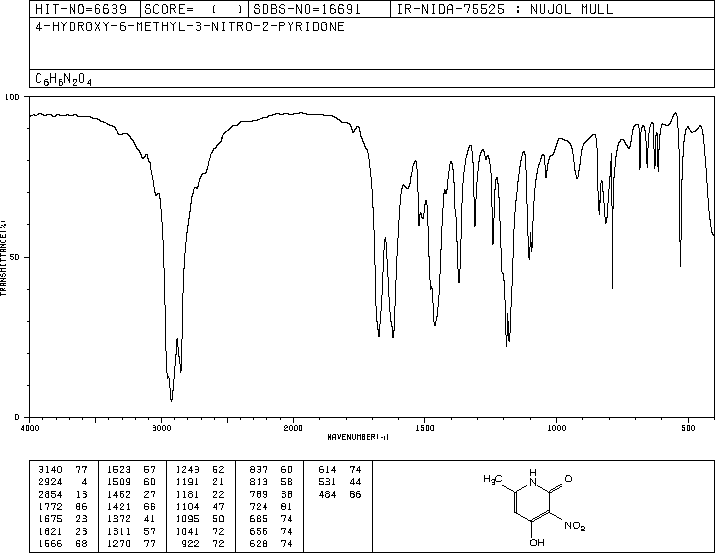

4-羥基-6-甲基-3-硝基-2-吡啶醇(4966-90-9)紅外圖譜(IR1)
InChI:InChI=1S/C6H6N2O4/c1-3-2-4(9)5(8(11)12)6(10)7-3/h2H,1H3,(H2,7,9,10)
InChIKey: QIKWTNPFTOEELW-UHFFFAOYSA-N
Smiles:C1(=O)NC(C)=CC(O)=C1[N+]([O-])=O
-

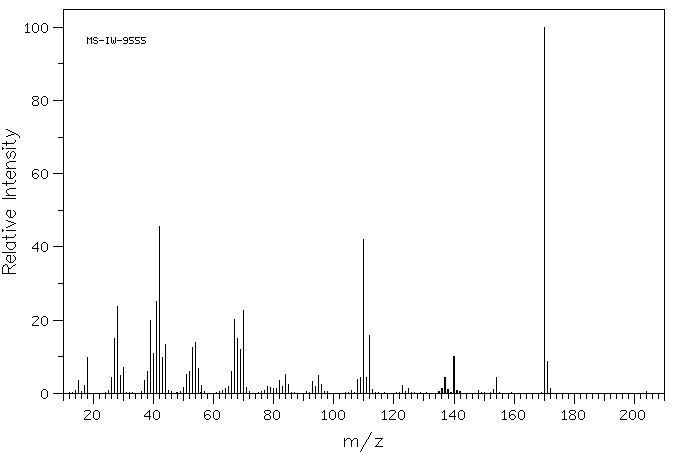

Mass
MS-IW-9555
4-hydroxy-6-methyl-3-nitro-2-pyridone
C6H6N2O4 (Mass of molecular ion: 170)
Source Temperature: 170 °C
Sample Temperature: 160 °C
Direct, 75 eV
15.0 3.4
17.0 2.1
18.0 9.8
26.0 4.3
27.0 15.0
28.0 23.8
29.0 4.8
30.0 7.0
37.0 3.5
38.0 6.0
39.0 19.8
40.0 11.0
41.0 25.0
42.0 45.6
43.0 9.9
44.0 13.3
50.0 1.7
51.0 5.1
52.0 6.0
53.0 12.6
54.0 13.8
55.0 6.7
56.0 2.1
64.0 1.2
65.0 2.0
66.0 6.0
67.0 20.1
68.0 15.1
69.0 11.9
70.0 22.7
71.0 1.6
78.0 1.8
79.0 1.7
80.0 1.4
81.0 1.2
82.0 3.5
83.0 2.0
84.0 5.1
85.0 2.4
93.0 3.2
94.0 1.9
95.0 4.8
96.0 2.4
108.0 3.8
109.0 4.3
110.0 42.0
111.0 4.2
112.0 15.7
113.0 1.0
123.0 2.2
125.0 1.2
136.0 1.2
137.0 4.2
138.0 1.0
140.0 10.1
153.0 1.0
154.0 4.3
170.0 100.0
171.0 8.6
172.0 1.2
