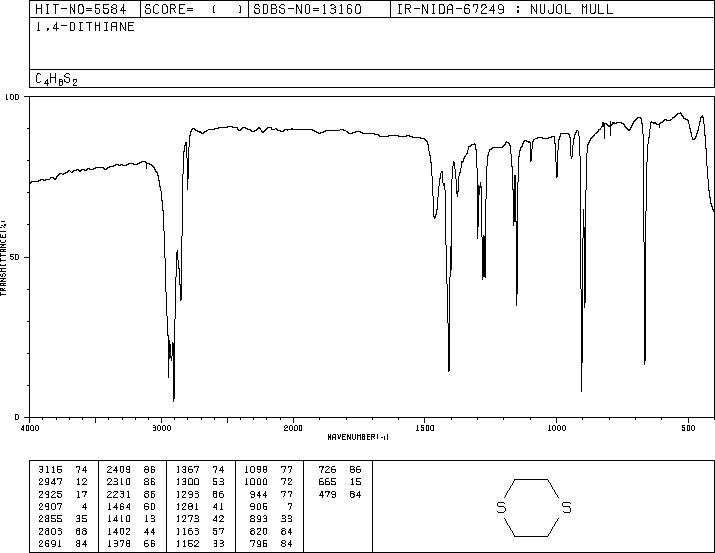

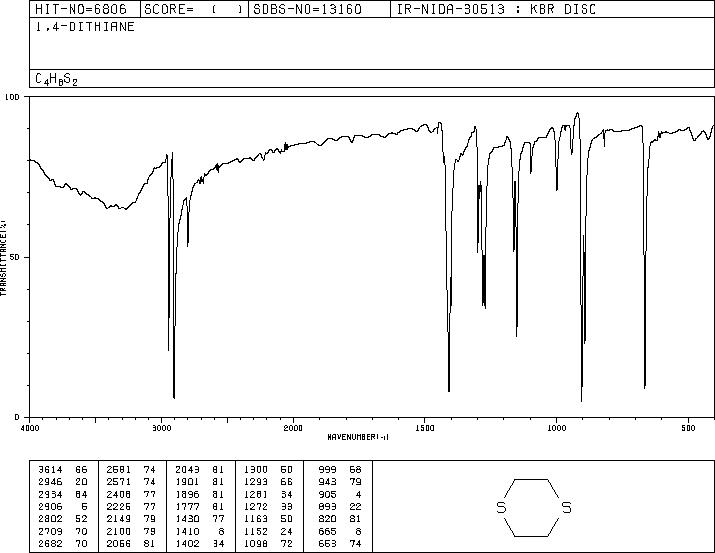

1,4-二噻烷(505-29-3)紅外圖譜(IR1)
InChI:InChI=1S/C4H8S2/c1-2-6-4-3-5-1/h1-4H2
InChIKey: LOZWAPSEEHRYPG-UHFFFAOYSA-N
Smiles:S1CCSCC1
-

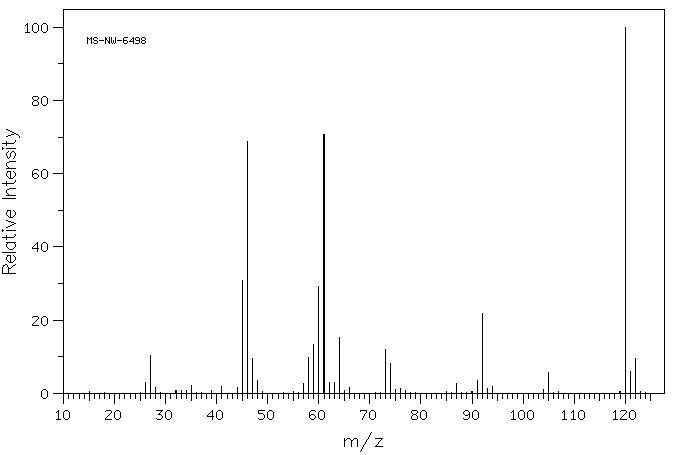

Mass
MS-NW-6498
1,4-dithiane
C4H8S2 (Mass of molecular ion: 120)
Source Temperature: 260 °C
Sample Temperature: 190 °C
Reservoir, 75 eV
26.0 2.9
27.0 10.4
28.0 1.7
35.0 2.2
41.0 1.8
44.0 1.6
45.0 30.7
46.0 68.7
47.0 9.6
48.0 3.4
57.0 2.7
58.0 9.8
59.0 13.3
60.0 29.3
61.0 70.6
62.0 3.1
63.0 3.0
64.0 15.2
66.0 1.7
73.0 12.0
74.0 8.1
75.0 1.1
76.0 1.2
87.0 2.7
91.0 3.4
92.0 21.7
93.0 1.2
94.0 2.0
104.0 1.0
105.0 5.8
120.0 100.0
121.0 6.1
122.0 9.4
-
| 1H NMR |
300 MHz |
| C4 H8 S2
|
0.044 g : 0.5 ml CDCl3
|
| 1,4-dithiane
|
 |
Parameter ppm Hz
D(A) 2.85
|
Hz ppm Int.
855.00 2.850 1000
