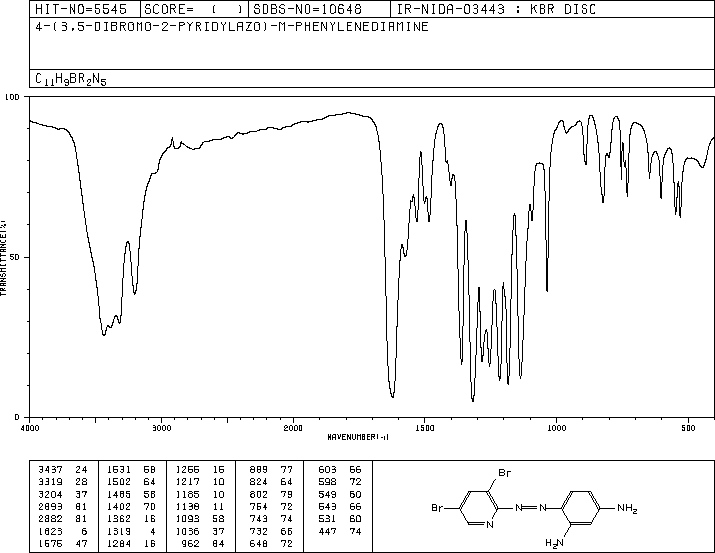

4-(3,5-二溴-2-吡啶偶氮)-1,3-苯二胺(50768-79-1)紅外圖譜(IR1)
分子式:C11H9Br2N5
分子量: 371.03
InChI:InChI=1S/C11H9Br2N5/c12-6-3-8(13)11(16-5-6)18-17-10-2-1-7(14)4-9(10)15/h1-5H,14-15H2
InChIKey: NDSPKICAQDKJTG-UHFFFAOYSA-N
Smiles:C1(N)=CC=C(N=NC2=NC=C(Br)C=C2Br)C(N)=C1
-

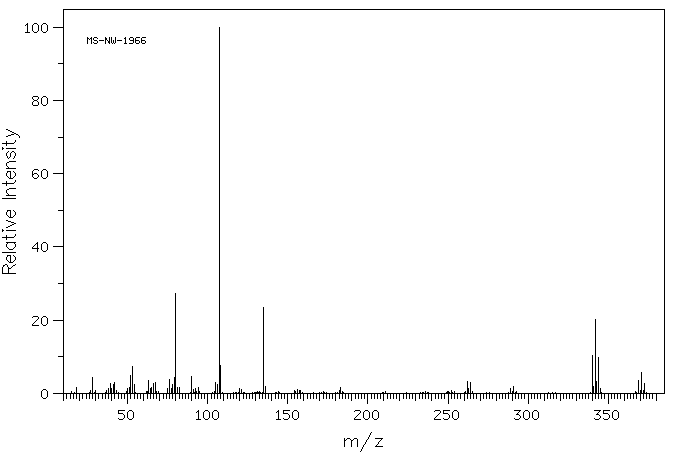

Mass
MS-NW-1966
4-(3,5-dibromo-2-pyridylazo)-m-phenylenediamine
C11H9Br2N5 (Mass of molecular ion: 369)
Source Temperature: 210 °C
Sample Temperature: 240 °C
Direct, 75 eV
18.0 1.5
28.0 4.2
38.0 1.3
39.0 2.6
40.0 1.2
41.0 2.4
42.0 2.9
50.0 1.3
51.0 1.6
52.0 4.9
53.0 7.4
54.0 2.5
63.0 3.6
64.0 1.4
65.0 1.5
66.0 2.7
67.0 3.1
75.0 1.3
76.0 3.7
77.0 1.3
78.0 2.5
79.0 4.4
80.0 27.2
81.0 1.7
82.0 1.7
90.0 4.5
91.0 1.0
92.0 1.4
94.0 1.6
105.0 2.9
106.0 2.4
107.0 100.0
108.0 7.6
120.0 1.4
121.0 1.1
135.0 23.4
136.0 1.9
156.0 1.1
183.0 1.5
262.0 3.2
263.0 1.2
264.0 2.9
289.0 1.4
291.0 2.0
340.0 10.3
341.0 2.0
342.0 20.2
343.0 3.2
344.0 9.8
345.0 1.4
369.0 3.6
371.0 5.7
373.0 2.7
