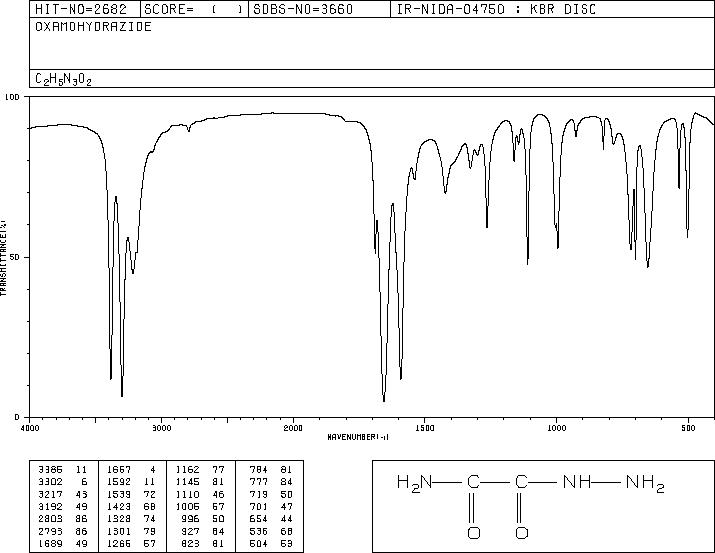

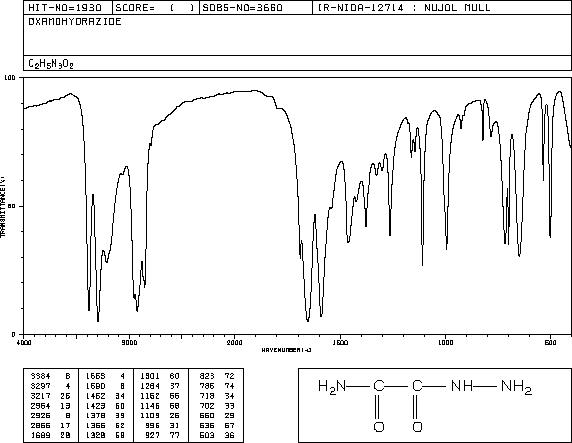

奧肼(515-96-8)紅外圖譜(IR2)
InChI:InChI=1S/C2H5N3O2/c3-1(6)2(7)5-4/h4H2,(H2,3,6)(H,5,7)
InChIKey: MOKRDWKSHLLYKM-UHFFFAOYSA-N
Smiles:C(NN)(=O)C(N)=O
-

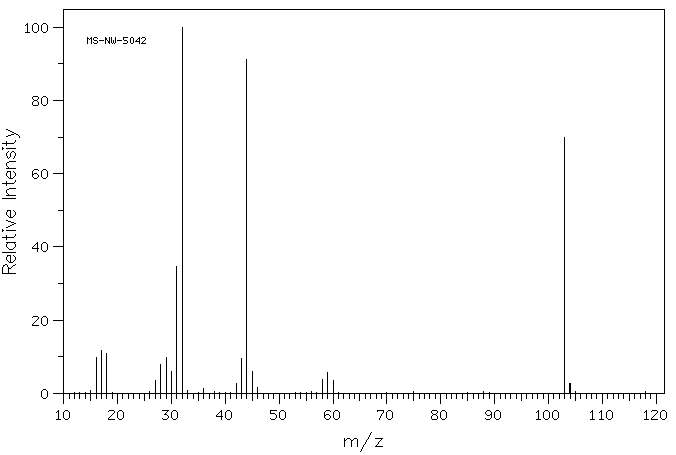

Mass
MS-NW-5042
oxamohydrazide
C2H5N3O2 (Mass of molecular ion: 103)
Source Temperature: 160 °C
Sample Temperature: 120 °C
Direct, 75 eV
16.0 9.8
17.0 11.7
18.0 10.9
27.0 3.4
28.0 8.0
29.0 9.8
30.0 5.9
31.0 34.6
32.0 100.0
36.0 1.2
42.0 2.6
43.0 9.4
44.0 91.1
45.0 5.9
46.0 1.5
58.0 3.9
59.0 5.6
60.0 3.5
103.0 69.9
104.0 2.7
