519-73-3

三苯基甲烷(519-73-3)質(zhì)譜(MS)

產(chǎn)品名稱:三苯基甲烷

CAS:519-73-3

分子式:C19H16

分子量: 244.33

InChI:InChI=1S/C19H16/c1-4-10-16(11-5-1)19(17-12-6-2-7-13-17)18-14-8-3-9-15-18/h1-15,19H

InChIKey: AAAQKTZKLRYKHR-UHFFFAOYSA-N

Smiles:C(C1=CC=CC=C1)(C1=CC=CC=C1)C1=CC=CC=C1

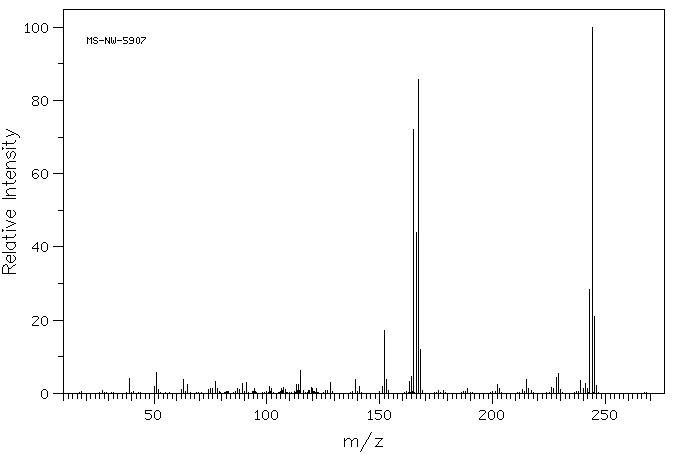

Mass

MS-NW-5907
triphenylmethane
C19H16              (Mass of molecular ion:    244)

   Source Temperature: 280 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV

      39.0       4.1
      50.0       1.8
      51.0       5.7
      52.0       1.0
      62.0       1.0
      63.0       3.9
      65.0       2.4
      74.0       1.1
      75.0       1.3
      76.0       1.4
      77.0       3.2
      78.0       1.4
      87.0       1.2
      88.0       1.0
      89.0       2.6
      91.0       3.0
      94.5       1.4
     101.0       1.9
     102.0       1.2
     106.5       1.2
     107.5       1.6
     108.0       1.1
     113.0       2.3
     114.0       2.3
     115.0       6.3
     119.5       1.7
     120.0       1.2
     122.0       1.3
     128.0       3.0
     139.0       3.9
     141.0       1.8
     151.0       2.0
     152.0      17.2
     153.0       3.8
     163.0       3.2
     164.0       4.6
     165.0      72.2
     166.0      43.9
     167.0      85.8
     168.0      11.9
     189.0       1.3
     202.0       2.5
     203.0       1.4
     213.0       1.0
     215.0       3.7
     216.0       1.3
     226.0       1.7
     227.0       1.3
     228.0       4.3
     229.0       5.3
     230.0       1.1
     239.0       3.6
     240.0       1.3
     241.0       2.8
     242.0       1.4
     243.0      28.3
     244.0     100.0
     245.0      21.0
     246.0       2.1

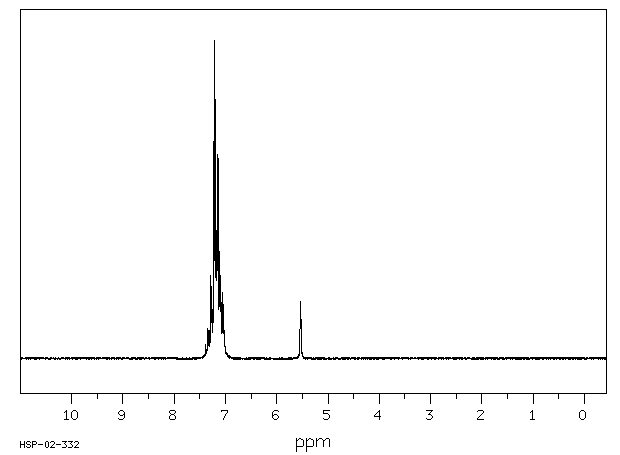

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₁₉ H₁₆	0.044 g : 0.5 ml CDCl₃
triphenylmethane

    Assign.     Shift(ppm)

      A          7.44 to 6.94
      B             5.535

     Hz     ppm     Int.

    661.44   7.386     44
    658.50   7.353     40
    657.69   7.344     94
    655.38   7.318     89
    653.00   7.292    262
    652.25   7.283    141
    651.25   7.272    226
    650.00   7.258    155
    647.69   7.232    683
    645.50   7.208   1000
    644.63   7.198    667
    643.44   7.185    404
    642.69   7.177    321
    642.19   7.171    384
    641.38   7.162    384
    640.13   7.148    642
    637.19   7.115    337
    635.13   7.092    227
    632.13   7.059    208
    630.63   7.042    131
    630.13   7.036    170
    628.44   7.017     42
    627.88   7.011     39
    495.75   5.536    179

in CDCl3
