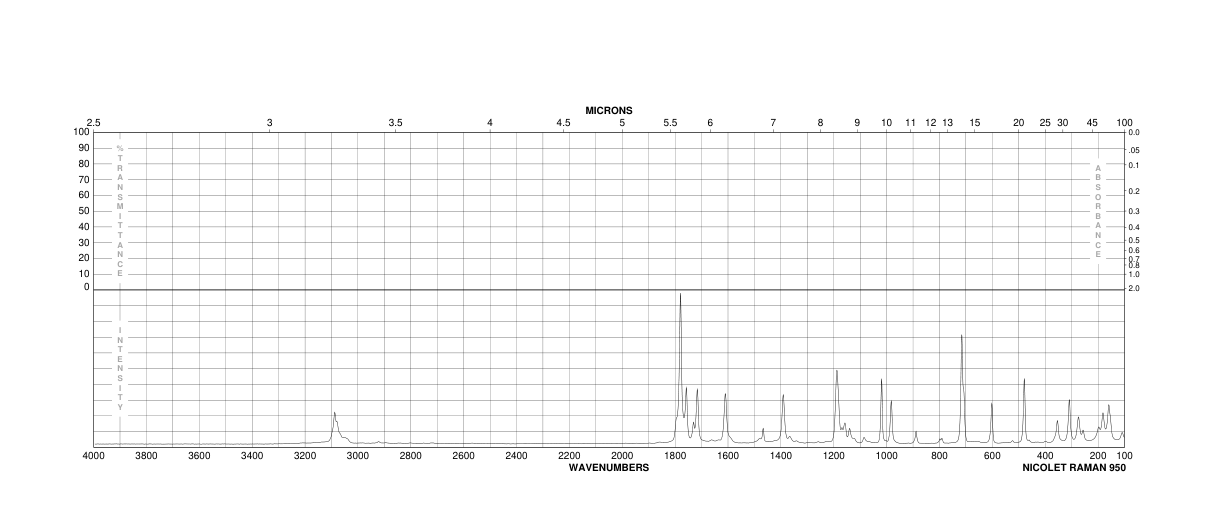

N-羥基鄰苯二甲酰亞胺(524-38-9)Raman光譜
InChI:InChI=1S/C8H5NO3/c10-7-5-3-1-2-4-6(5)8(11)9(7)12/h1-4,12H
InChIKey: CFMZSMGAMPBRBE-UHFFFAOYSA-N
Smiles:C1(=O)C2=C(C=CC=C2)C(=O)N1O
-

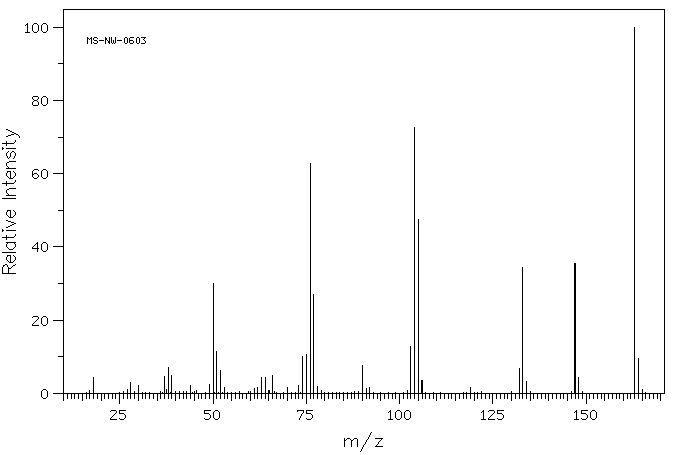

Mass
MS-NW-0603
N-hydroxyphthalimide
C8H5NO3 (Mass of molecular ion: 163)
Source Temperature: 200 °C
Sample Temperature: 150 °C
Direct, 75 eV
18.0 4.2
27.0 1.0
28.0 3.0
30.0 2.1
37.0 4.6
37.5 1.1
38.0 7.0
39.0 4.8
44.0 2.1
49.0 2.3
50.0 30.1
51.0 11.5
52.0 6.3
53.0 1.5
61.0 1.2
62.0 1.6
63.0 4.4
64.0 4.4
66.0 4.8
70.0 1.5
73.0 2.1
74.0 10.2
75.0 10.5
76.0 62.9
77.0 27.0
78.0 2.0
90.0 7.5
91.0 1.4
92.0 1.7
103.0 12.9
104.0 72.6
105.0 47.5
106.0 3.6
119.0 1.6
132.0 6.8
133.0 34.4
134.0 3.2
147.0 35.6
148.0 4.3
163.0 100.0
164.0 9.4
165.0 1.0
