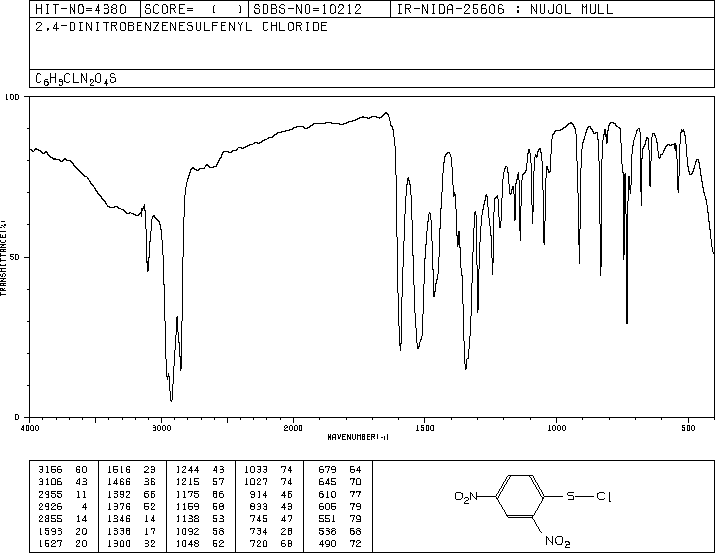

2,4一二硝基苯硫氯(528-76-7)紅外圖譜(IR2)
分子式:C6H3ClN2O4S
分子量: 234.62
InChI:InChI=1S/C6H3ClN2O4S/c7-14-6-2-1-4(8(10)11)3-5(6)9(12)13/h1-3H
InChIKey: GPXDNWQSQHFKRB-UHFFFAOYSA-N
Smiles:C1(SCl)=CC=C([N+]([O-])=O)C=C1[N+]([O-])=O
400 MHz in DMSO-d6
90 MHz in CDCl3
-
| 1H NMR |
399.65 MHz |
| C6 H3 Cl N2 O4 S
|
saturated in DMSO-d6
|
| 2,4-dinitrobenzenesulfenyl chloride
|
 |
Assign. Shift(ppm)
A 8.566
B 8.413
C 8.099
|
Hz ppm Int.
3426.67 8.575 52
3424.22 8.569 901
3422.24 8.564 1000
3367.92 8.428 688
3365.63 8.422 612
3361.82 8.412 34
3359.38 8.406 740
3357.09 8.401 667
3239.29 8.106 986
3233.80 8.092 31
3230.74 8.084 826
-

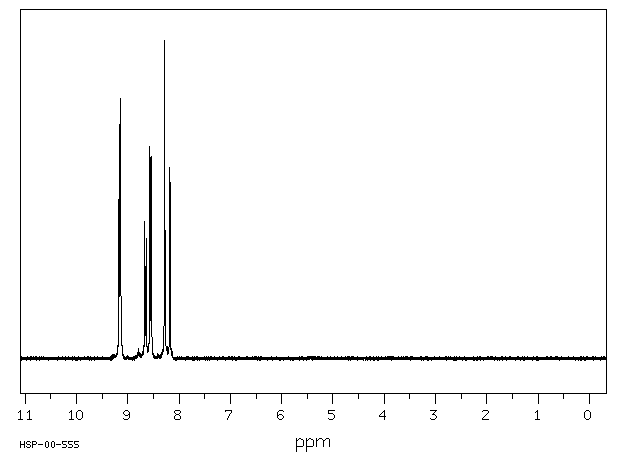

| 1H NMR |
89.56 MHz |
| C6 H3 Cl N2 O4 S
|
0.048 g : 0.5 ml CDCl3
|
| 2,4-dinitrobenzenesulfenyl chloride
|
|
Assign. Shift(ppm)
A 9.155
B 8.594
C 8.243
|
Hz ppm Int.
823.38 9.194 41
821.13 9.169 736
818.81 9.143 818
787.13 8.789 30
778.31 8.691 30
776.38 8.669 432
774.06 8.643 376
771.94 8.620 35
770.69 8.606 30
769.38 8.591 41
767.31 8.568 668
764.94 8.542 635
744.63 8.315 28
741.69 8.282 1000
738.19 8.243 31
737.69 8.237 36
737.38 8.234 36
732.56 8.180 602
