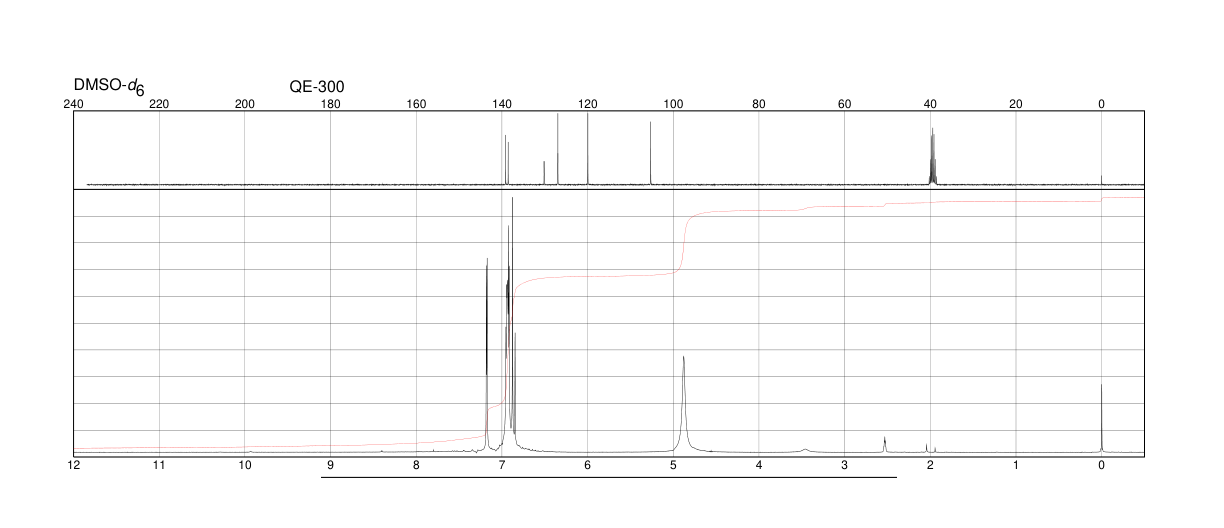

2-硝基-1,4-苯二胺(5307-14-2)核磁圖(1HNMR)
InChI:InChI=1S/C6H7N3O2/c7-4-1-2-5(8)6(3-4)9(10)11/h1-3H,7-8H2
InChIKey: HVHNMNGARPCGGD-UHFFFAOYSA-N
Smiles:C1(N)=CC=C(N)C=C1[N+]([O-])=O
-

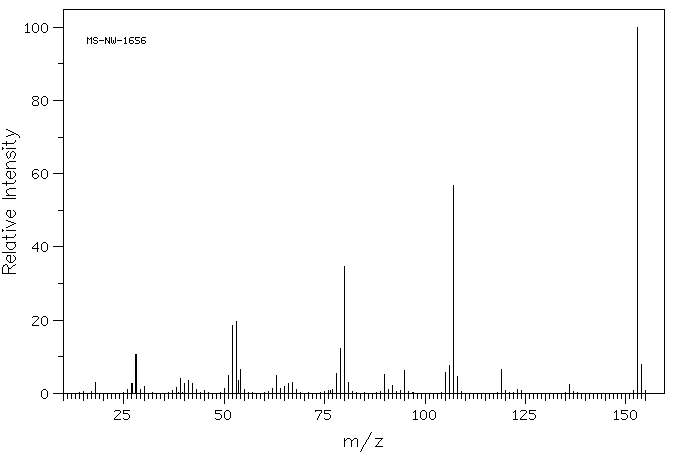

Mass
MS-NW-1656
2-nitro-p-phenylenediamine
C6H7N3O2 (Mass of molecular ion: 153)
Source Temperature: 180 °C
Sample Temperature: 150 °C
Direct, 75 eV
18.0 3.0
26.0 1.0
27.0 2.8
28.0 10.7
29.0 1.1
30.0 1.9
38.0 1.7
39.0 4.0
40.0 2.8
41.0 3.5
42.0 2.6
43.0 1.1
50.0 1.4
51.0 4.9
52.0 18.6
53.0 19.7
53.5 3.6
54.0 6.6
55.0 1.1
62.0 1.3
63.0 4.9
64.0 1.3
65.0 1.9
66.0 2.8
67.0 3.0
68.0 1.0
77.0 1.0
78.0 5.3
79.0 12.3
80.0 34.7
81.0 3.0
90.0 5.1
91.0 1.0
92.0 2.1
95.0 6.2
105.0 5.7
106.0 7.5
107.0 56.9
108.0 4.5
119.0 6.4
123.0 1.1
136.0 2.3
153.0 100.0
154.0 7.8
