3-甲氧基-2-硝基苯甲酸甲酯(5307-17-5)核磁圖(1HNMR)
InChI:InChI=1S/C9H9NO5/c1-14-7-5-3-4-6(9(11)15-2)8(7)10(12)13/h3-5H,1-2H3
InChIKey: FDQQRLPHAAICCR-UHFFFAOYSA-N
Smiles:C(OC)(=O)C1=CC=CC(OC)=C1[N+]([O-])=O
-

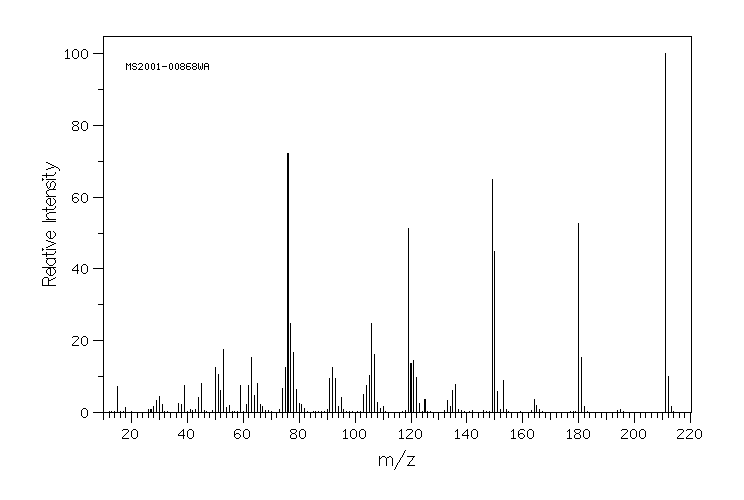

Mass
MS2001-00868WA
3-methoxy-2-nitrobenzoic acid methyl ester
C9H9NO5 (Mass of molecular ion: 211)
Source Temperature: 300 °C
Sample Temperature: 260 °C
Reservoir, 70 eV
15.0 7.1
18.0 1.2
28.0 1.6
29.0 3.4
30.0 4.3
31.0 2.1
37.0 2.4
38.0 2.2
39.0 7.6
44.0 4.2
45.0 8.1
50.0 12.6
51.0 10.6
52.0 6.1
53.0 17.6
54.0 1.2
55.0 1.8
59.0 7.5
61.0 2.1
62.0 7.5
63.0 15.4
64.0 4.7
65.0 8.1
66.0 2.1
67.0 1.6
74.0 6.6
75.0 12.6
76.0 72.1
77.0 24.8
78.0 16.7
79.0 6.3
80.0 2.4
81.0 2.2
82.0 1.0
91.0 9.3
92.0 12.6
93.0 9.5
94.0 1.7
95.0 4.0
103.0 5.0
104.0 7.4
105.0 10.2
106.0 24.7
107.0 16.2
108.0 2.8
109.0 1.1
110.0 1.6
119.0 51.2
120.0 13.6
121.0 14.5
122.0 9.6
123.0 2.4
125.0 3.6
133.0 3.3
134.0 1.6
135.0 6.1
136.0 7.7
149.0 65.1
150.0 45.0
151.0 5.7
153.0 8.9
164.0 3.6
165.0 1.9
180.0 52.8
181.0 15.4
182.0 1.7
211.0 100.0
212.0 10.0
213.0 1.5
