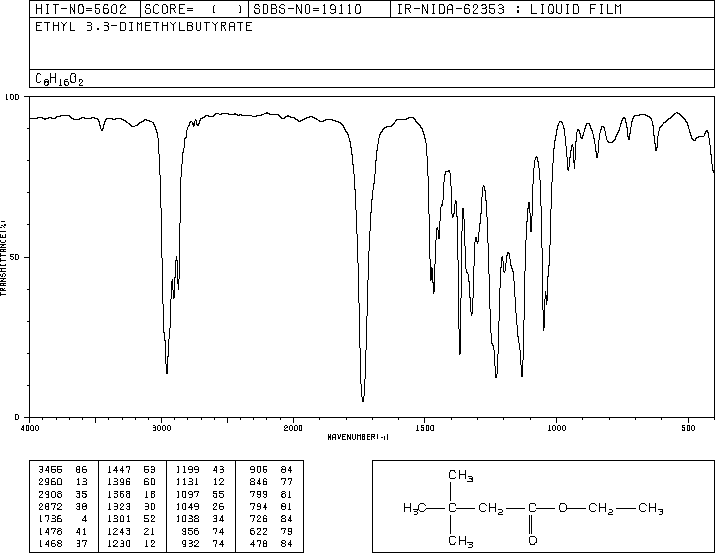

叔丁基乙酸乙酯(5340-78-3)紅外圖譜(IR1)
InChI:InChI=1S/C8H16O2/c1-5-10-7(9)6-8(2,3)4/h5-6H2,1-4H3
InChIKey: JWMNHAMYTBAUPI-UHFFFAOYSA-N
Smiles:C(OCC)(=O)CC(C)(C)C
-

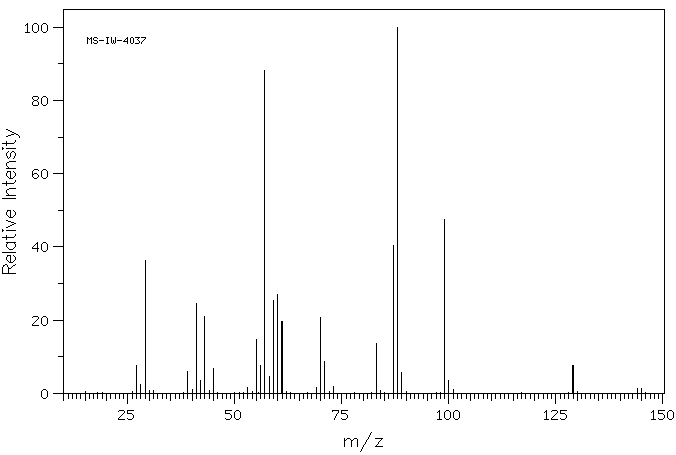

Mass
MS-IW-4037
ethyl 3,3-dimethylbutyrate
C8H16O2 (Mass of molecular ion: 144)
Source Temperature: 220 °C
Sample Temperature: 150 °C
Reservoir, 75 eV
27.0 7.7
28.0 2.3
29.0 36.2
39.0 6.0
40.0 1.0
41.0 24.6
42.0 3.4
43.0 21.0
45.0 6.7
53.0 1.5
55.0 14.8
56.0 7.5
57.0 88.1
58.0 4.6
59.0 25.4
60.0 27.1
61.0 19.6
69.0 1.5
70.0 20.6
71.0 8.8
73.0 1.9
83.0 13.6
87.0 40.4
88.0 100.0
89.0 5.8
99.0 47.6
100.0 3.4
101.0 1.1
129.0 7.5
144.0 1.3
145.0 1.3
