5417-63-0

3-氨基-2-萘酚(5417-63-0)核磁圖(¹³CNMR)

產(chǎn)品名稱:3-氨基-2-萘酚

CAS:5417-63-0

分子式:C10H9NO

分子量: 159.18

InChI:InChI=1S/C10H9NO/c11-9-5-7-3-1-2-4-8(7)6-10(9)12/h1-6,12H,11H2

InChIKey: ZHVPTERSBUMMHK-UHFFFAOYSA-N

Smiles:C1=C2C(C=CC=C2)=CC(N)=C1O

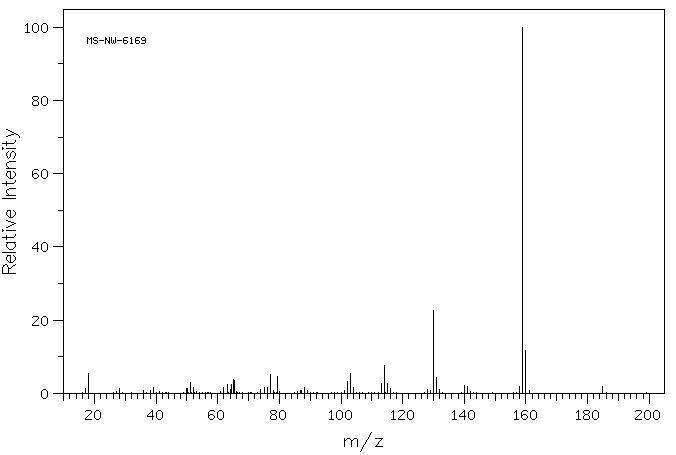

Mass

MS-NW-6169
3-amino-2-naphthol
C10H9NO             (Mass of molecular ion:    159)

   Source Temperature: 170 °C
   Sample Temperature: 100 °C
   Direct, 75 eV

      17.0       1.2
      18.0       5.5
      28.0       1.3
      39.0       1.5
      50.0       1.3
      51.0       3.0
      52.0       1.6
      62.0       1.5
      63.0       2.5
      64.0       1.1
      64.5       2.3
      65.0       3.8
      65.5       3.6
      74.0       1.1
      75.0       1.5
      76.0       1.6
      77.0       5.1
      79.5       4.5
      88.0       1.7
     102.0       3.2
     103.0       5.5
     104.0       1.5
     113.0       2.6
     114.0       7.7
     115.0       2.8
     116.0       1.2
     128.0       1.0
     130.0      22.6
     131.0       4.4
     132.0       1.0
     140.0       2.1
     141.0       1.8
     158.0       2.0
     159.0     100.0
     160.0      11.8
     185.0       1.8

400 MHz in DMSO-d6

¹H NMR	399.65 MHz
C₁₀ H₉ N O	0.040 g : 0.5 ml DMSO-d₆
3-amino-2-naphthol

    Assign.     Shift(ppm)

      A             9.92
      B             7.478
      C             7.438
      D             7.108
      E             7.054
      F             7.050
      G             6.894
      J             5.08

     Hz     ppm     Int.

   3964.23   9.920     89
   3963.01   9.917     88
   2993.01   7.490    332
   2985.08   7.470    367
   2976.99   7.449    344
   2969.06   7.430    379
   2849.43   7.130    150
   2848.21   7.127    170
   2842.56   7.113    291
   2841.49   7.110    349
   2834.63   7.093    246
   2833.40   7.090    235
   2824.86   7.069    269
   2823.64   7.066    302
   2819.37   7.055   1000
   2810.21   7.032    151
   2808.99   7.029    145
   2755.43   6.895    963
   2048.49   5.126     43
   2033.08   5.088     94
   2032.32   5.086     95
   2031.71   5.084     96
   2030.94   5.082     97
   2029.27   5.078     98
   2028.66   5.077     98
   2027.44   5.074     97
   2024.84   5.067     93
   2017.82   5.049     70
   2009.28   5.028     43
   2008.06   5.025     41
   2002.41   5.011     30

in DMSO-d6
