丁二酰氯(543-20-4)質(zhì)譜(MS)
分子式:C4H4Cl2O2
分子量: 154.98
InChI:InChI=1S/C4H4Cl2O2/c5-3(7)1-2-4(6)8/h1-2H2
InChIKey: IRXBNHGNHKNOJI-UHFFFAOYSA-N
Smiles:C(Cl)(=O)CCC(Cl)=O
-

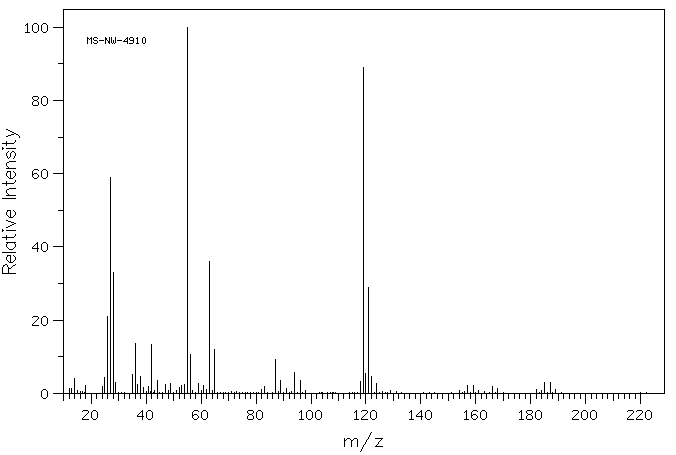

Mass
MS-NW-4910
succinyl dichloride
C4H4Cl2O2 (Mass of molecular ion: 154)
Source Temperature: 270 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
12.0 1.2
13.0 1.4
14.0 4.1
18.0 2.1
24.0 1.9
25.0 4.3
26.0 20.9
27.0 59.1
28.0 33.1
29.0 3.1
35.0 5.1
36.0 13.7
37.0 2.4
38.0 4.5
39.0 1.6
41.0 1.9
42.0 13.4
44.0 3.4
47.0 2.4
49.0 2.8
52.0 1.6
53.0 2.2
54.0 2.5
55.0 100.0
56.0 10.6
59.0 2.6
61.0 2.1
62.0 1.0
63.0 35.9
65.0 12.0
82.0 1.0
83.0 1.8
87.0 9.3
89.0 3.5
91.0 1.4
94.0 5.6
96.0 3.5
118.0 3.2
119.0 89.0
120.0 5.4
121.0 28.9
122.0 4.6
124.0 2.7
157.0 2.2
159.0 2.1
166.0 1.8
168.0 1.2
182.0 1.1
185.0 3.1
187.0 2.9
189.0 1.0
-

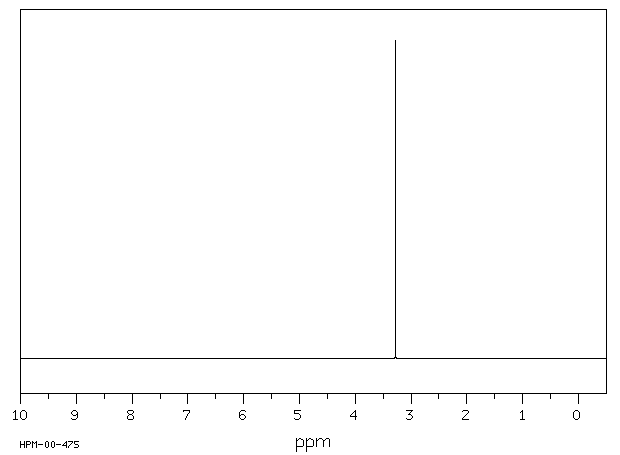

| 1H NMR |
300 MHz |
| C4 H4 Cl2 O2
|
0.05 ml : 0.5 ml CDCl3
|
| succinyl dichloride
|
 |
Parameter ppm Hz
D(A) 3.282
|
Hz ppm Int.
984.60 3.282 1000
