5472-49-1

N-(3-氯丙基)哌啶鹽酸鹽(5472-49-1)Raman光譜

產(chǎn)品名稱:N-(3-氯丙基)哌啶鹽酸鹽

CAS:5472-49-1

分子式:C8H17Cl2N

分子量: 198.13

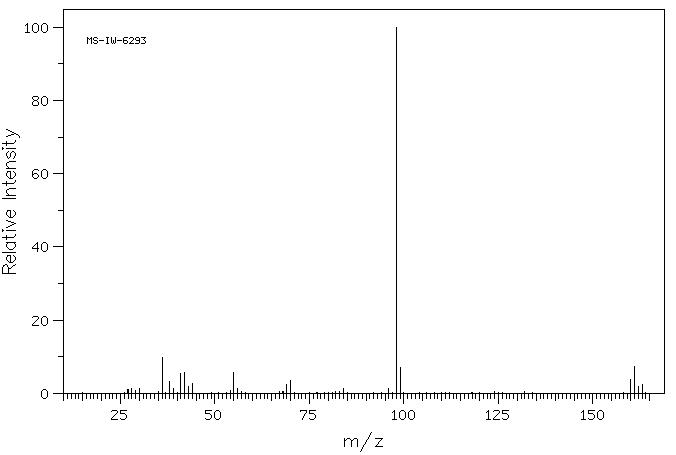

Mass

MS-IW-6293
1-(3-chloropropyl)piperidine hydrochloride
C8H16ClN HCl        (Mass of molecular ion:    161)

   Source Temperature: 150 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      27.0       1.0
      28.0       1.4
      30.0       1.2
      36.0       9.7
      38.0       3.2
      39.0       1.3
      41.0       5.5
      42.0       5.6
      43.0       1.9
      44.0       2.8
      55.0       5.7
      56.0       1.4
      69.0       2.4
      70.0       3.5
      84.0       1.4
      96.0       1.3
      98.0     100.0
      99.0       7.2
     160.0       3.7
     161.0       7.3
     162.0       1.9
     163.0       2.3

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₈ H₁₆ Cl N	0.046 g : 0.5 ml CDCl₃
1-(3-chloropropyl)piperidine hydrochloride

    Assign.     Shift(ppm)

      A             3.697
      B             3.544
      C             3.188
      D             2.843
      E             2.467
      F             2.24
      G             1.895
      J             1.50

     Hz     ppm     Int.

   1483.52   3.713    814
   1477.54   3.698   1000
   1474.49   3.690    141
   1471.56   3.683    813
   1420.53   3.555    304
   1408.94   3.526    311
   1280.40   3.204    247
   1275.15   3.191    300
   1274.54   3.190    300
   1268.43   3.174    251
   1152.47   2.884    115
   1142.33   2.859    218
   1132.81   2.835    212
   1121.70   2.807    101
    998.66   2.499    197
    992.55   2.484    314
    990.60   2.479    218
    989.26   2.476    207
    986.69   2.469    337
    984.50   2.464    296
    982.42   2.459    343
    976.07   2.443    268
    970.34   2.428    154
    917.60   2.297     88
    914.06   2.288     80
    905.03   2.265    208
    902.95   2.260    199
    893.43   2.236    198
    890.26   2.228    224
    881.10   2.205     87
    877.69   2.197    101
    874.51   2.189     67
    762.82   1.909    495
    751.71   1.881    436
    616.58   1.543     61
    613.28   1.535     54
    605.22   1.515    113
    603.76   1.511    119
    600.71   1.504    113
    594.36   1.488     92
    591.19   1.480    107

in CDCl3
