585-48-8

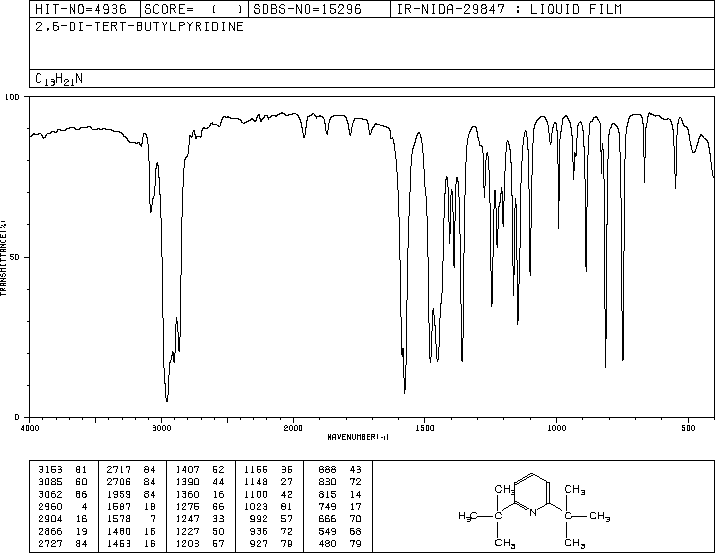

2,6-二叔丁基吡啶(585-48-8)紅外圖譜(IR1)

產(chǎn)品名稱:2,6-二叔丁基吡啶

CAS:585-48-8

分子式:C13H21N

分子量: 191.31

InChI:InChI=1S/C13H21N/c1-12(2,3)10-8-7-9-11(14-10)13(4,5)6/h7-9H,1-6H3

InChIKey: UWKQJZCTQGMHKD-UHFFFAOYSA-N

Smiles:C1(C(C)(C)C)=NC(C(C)(C)C)=CC=C1

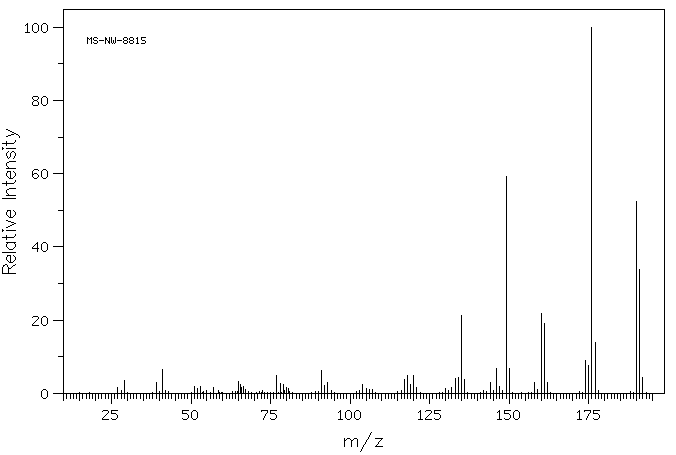

Mass

MS-NW-8815
2,6-di-tert-butylpyridine
C13H21N             (Mass of molecular ion:    191)

   Source Temperature: 270 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      27.0       1.5
      29.0       3.4
      39.0       3.1
      41.0       6.6
      51.0       1.9
      52.0       1.2
      53.0       1.9
      57.0       1.6
      65.0       3.2
      65.5       2.5
      66.0       1.7
      66.5       1.9
      67.0       1.0
      77.0       4.8
      78.0       2.7
      79.0       2.5
      80.0       1.6
      80.5       1.3
      91.0       6.2
      92.0       2.2
      93.0       3.0
     104.0       2.4
     105.0       1.3
     106.0       1.0
     107.0       1.1
     117.0       3.7
     118.0       4.8
     119.0       2.5
     120.0       4.9
     121.0       1.5
     130.0       1.2
     132.0       1.6
     133.0       4.1
     134.0       4.4
     135.0      21.2
     136.0       3.9
     144.0       2.9
     146.0       6.9
     147.0       1.8
     149.0      59.3
     150.0       6.8
     158.0       2.9
     159.0       1.1
     160.0      21.9
     161.0      19.2
     162.0       2.9
     174.0       9.1
     175.0       7.7
     176.0     100.0
     177.0      13.8
     190.0      52.4
     191.0      33.9
     192.0       4.3

90 MHz in CDCl3

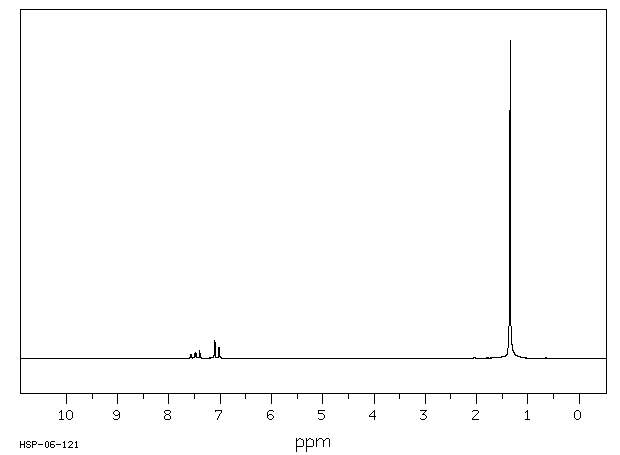

¹H NMR	89.56 MHz
C₁₃ H₂₁ N	0.05 ml : 0.5 ml CDCl₃
2,6-di-tert-butylpyridine

    Assign.     Shift(ppm)

      A             7.468
      B             7.070
      C             1.345

     Hz     ppm     Int.

    662.44   7.397     26
    636.50   7.107     55
    636.00   7.102     52
    629.06   7.024     34
    627.94   7.012     30
    120.50   1.346   1000

in CDCl3
