603-34-9

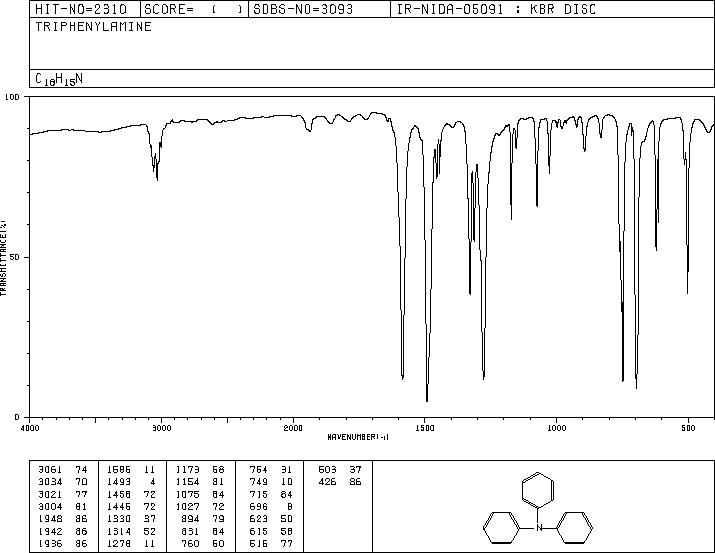

三苯胺(603-34-9)紅外圖譜(IR2)

產(chǎn)品名稱:三苯胺

CAS:603-34-9

分子式:C18H15N

分子量: 245.32

InChI:InChI=1S/C18H15N/c1-4-10-16(11-5-1)19(17-12-6-2-7-13-17)18-14-8-3-9-15-18/h1-15H

InChIKey: ODHXBMXNKOYIBV-UHFFFAOYSA-N

Smiles:C1(N(C2=CC=CC=C2)C2=CC=CC=C2)=CC=CC=C1

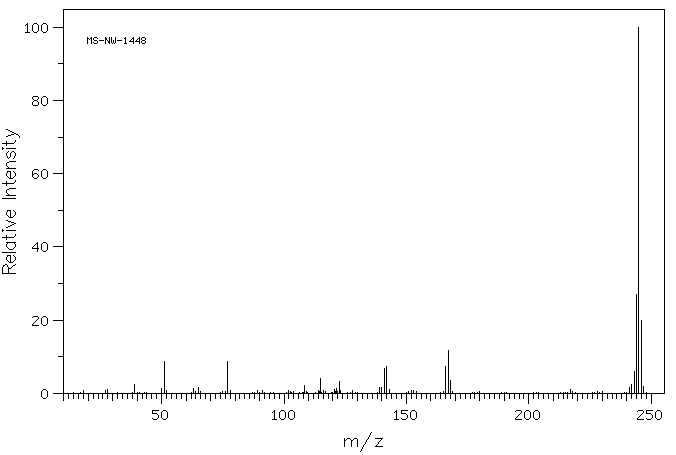

Mass

MS-NW-1448
triphenylamine
C18H15N             (Mass of molecular ion:    245)

   Source Temperature: 250 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV

      28.0       1.0
      39.0       2.5
      50.0       1.3
      51.0       8.8
      63.0       1.3
      65.0       1.6
      77.0       8.8
     108.5       2.1
     115.0       4.1
     120.5       1.0
     121.5       1.2
     122.5       3.2
     139.0       1.6
     140.0       1.5
     141.0       6.8
     142.0       7.4
     143.0       1.1
     166.0       7.3
     167.0      11.7
     168.0       3.6
     217.0       1.0
     241.0       1.7
     242.0       2.4
     243.0       5.9
     244.0      26.9
     245.0     100.0
     246.0      20.0
     247.0       1.8

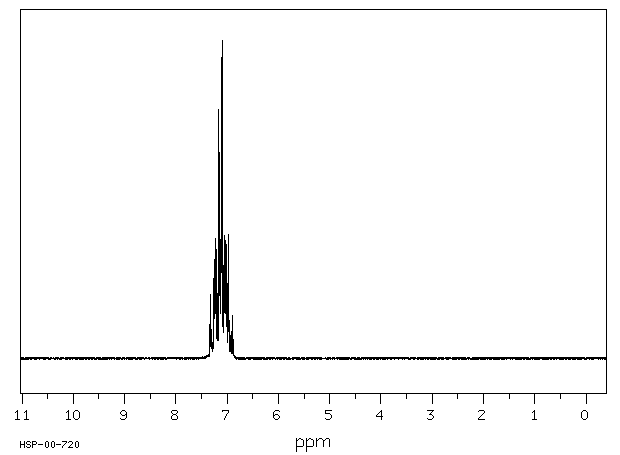

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₁₈ H₁₅ N	0.045 g : 0.5 ml CDCl₃
triphenylamine

    Assign.     Shift(ppm)

      A             7.23
      B             7.13
      C             6.97

     Hz     ppm     Int.

    656.75   7.334    107
    655.44   7.319    202
    653.50   7.297     91
    651.44   7.274     40
    649.69   7.255    300
    648.88   7.246    155
    647.75   7.233    378
    646.88   7.223    206
    646.31   7.217    359
    645.50   7.208    231
    643.88   7.190    206
    641.25   7.161    784
    640.38   7.151    650
    639.38   7.140    283
    638.19   7.126    376
    637.38   7.117    448
    636.06   7.103    947
    635.56   7.097   1000
    632.13   7.059    387
    631.00   7.046    328
    629.63   7.031    206
    628.81   7.022    372
    626.94   7.001    235
    625.06   6.980    144
    624.00   6.968    391
    620.75   6.932     71
    619.44   6.917     85
    617.44   6.895    135
    615.69   6.875     60

in CDCl3
