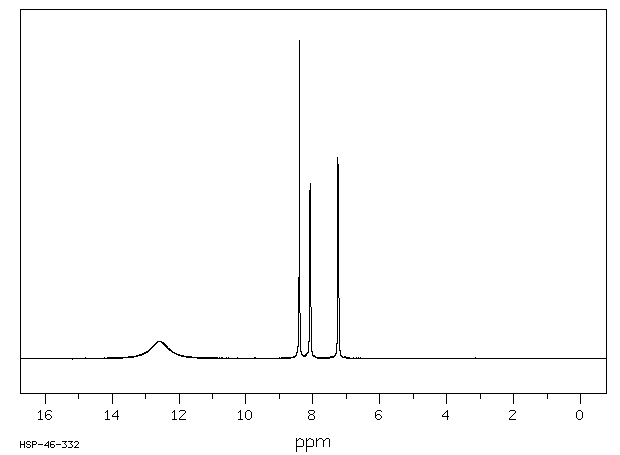

4-羥基-3-硝基苯甲酸(616-82-0)核磁圖(1HNMR)
InChI:InChI=1S/C7H5NO5/c9-6-2-1-4(7(10)11)3-5(6)8(12)13/h1-3,9H,(H,10,11)
InChIKey: QRYSWXFQLFLJTC-UHFFFAOYSA-N
Smiles:C(O)(=O)C1=CC=C(O)C([N+]([O-])=O)=C1
-

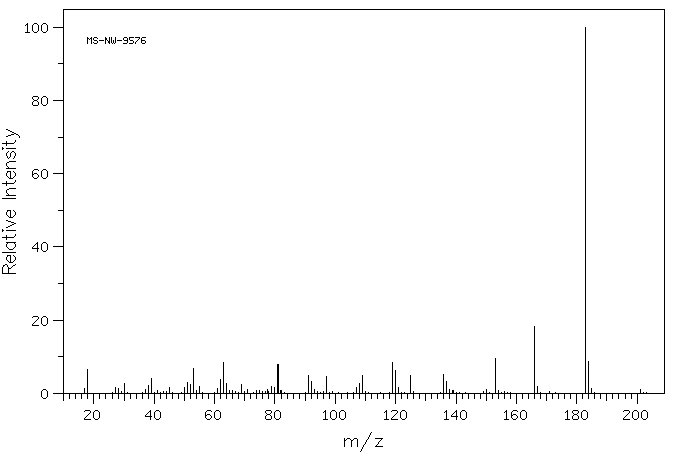

Mass
MS-NW-9576
4-hydroxy-3-nitrobenzoic acid
C7H5NO5 (Mass of molecular ion: 183)
Source Temperature: 180 °C
Sample Temperature: 110 °C
Direct, 75 eV
17.0 1.2
18.0 6.4
27.0 1.6
28.0 1.3
30.0 2.6
37.0 1.0
38.0 2.1
39.0 4.0
45.0 1.5
50.0 1.6
51.0 3.0
52.0 2.4
53.0 6.9
55.0 1.9
61.0 1.3
62.0 3.8
63.0 8.5
64.0 2.6
69.0 2.4
71.0 1.1
77.5 1.1
79.0 2.0
80.0 1.7
81.0 8.0
91.0 4.8
92.0 3.3
93.0 1.0
97.0 4.5
107.0 1.7
108.0 2.7
109.0 4.9
119.0 8.5
120.0 6.2
121.0 1.5
125.0 5.0
136.0 5.1
137.0 3.2
138.0 1.1
150.0 1.0
153.0 9.5
166.0 18.2
167.0 2.0
183.0 100.0
184.0 8.6
185.0 1.3
201.0 1.1
