61813-58-9

4-乙氧基-3-甲氧基苯甲醇(61813-58-9)核磁圖(¹HNMR)

產(chǎn)品名稱:4-乙氧基-3-甲氧基苯甲醇

CAS:61813-58-9

分子式:C10H14O3

分子量: 182.22

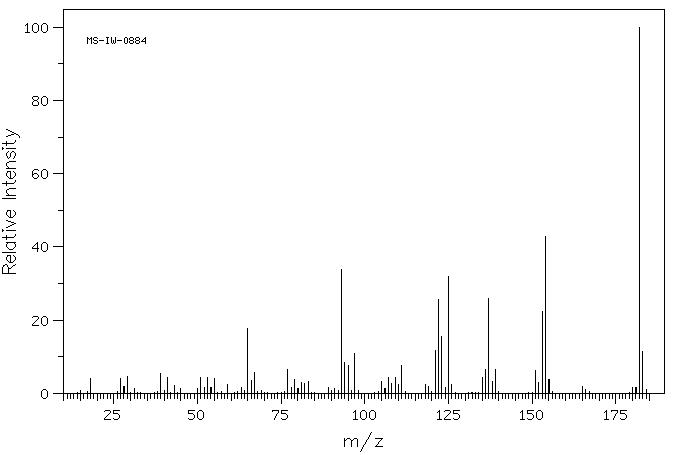

Mass

MS-IW-0884
4-ethoxy-3-methoxybenzyl alcohol
C10H14O3            (Mass of molecular ion:    182)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      18.0       4.0
      27.0       4.1
      28.0       2.0
      29.0       4.6
      31.0       1.4
      39.0       5.4
      41.0       4.4
      43.0       2.2
      45.0       1.2
      50.0       1.2
      51.0       4.2
      52.0       1.6
      53.0       4.3
      54.0       1.5
      55.0       4.0
      59.0       2.4
      63.0       1.6
      65.0      17.6
      66.0       3.5
      67.0       5.6
      77.0       6.6
      78.0       1.7
      79.0       3.8
      80.0       1.2
      81.0       2.9
      82.0       2.6
      83.0       3.2
      89.0       1.6
      91.0       1.4
      93.0      33.9
      94.0       8.4
      95.0       7.6
      97.0      10.9
     105.0       3.2
     106.0       1.4
     107.0       4.3
     108.0       2.6
     109.0       4.3
     110.0       2.4
     111.0       7.6
     118.0       2.3
     119.0       1.9
     121.0      11.6
     122.0      25.6
     123.0      15.4
     124.0       1.7
     125.0      31.9
     126.0       2.5
     135.0       4.2
     136.0       6.4
     137.0      25.8
     138.0       3.2
     139.0       6.6
     151.0       6.3
     152.0       3.0
     153.0      22.4
     154.0      42.9
     155.0       3.9
     165.0       1.8
     166.0       1.0
     180.0       1.6
     181.0       1.7
     182.0     100.0
     183.0      11.3
     184.0       1.1

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₁₀ H₁₄ O₃	0.033 g : 0.5 ml CDCl₃
4-ethoxy-3-methoxybenzyl alcohol

    Assign.     Shift(ppm)

      A             6.90
      B             6.83
      C             4.58
      D             4.073
      E             3.847
      F             1.84
      G             1.425

     CONFIRMED BY LAOCN PROGRAM.

     Hz     ppm     Int.

    617.88   6.900    143
    612.50   6.839    397
    410.44   4.583    136
    375.81   4.197     71
    368.69   4.117    220
    361.69   4.039    232
    354.81   3.962     87
    344.63   3.849   1000
    165.00   1.843     58
    134.50   1.502    253
    131.94   1.474     25
    131.44   1.468     26
    127.56   1.425    512
    120.50   1.346    224

in CDCl3
