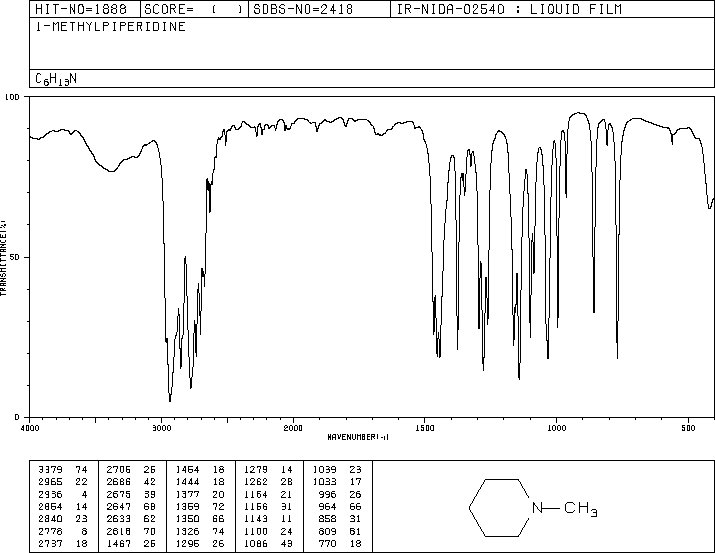

N-甲基哌啶(626-67-5)紅外圖譜(IR1)
InChI:InChI=1S/C6H13N/c1-7-5-3-2-4-6-7/h2-6H2,1H3
InChIKey: PAMIQIKDUOTOBW-UHFFFAOYSA-N
Smiles:N1(C)CCCCC1
-

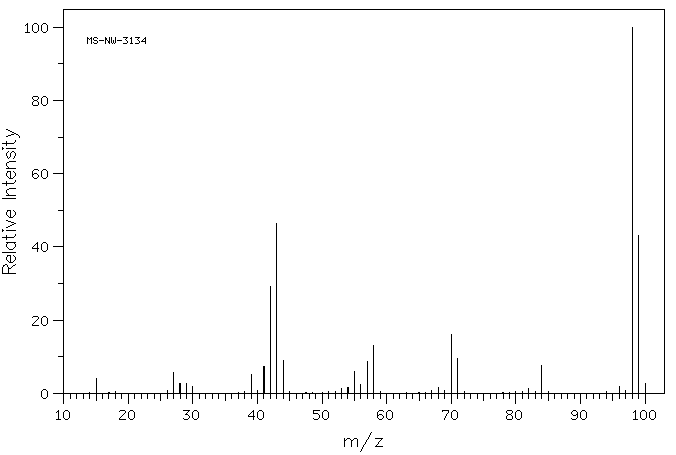

Mass
MS-NW-3134
1-methylpiperidine
C6H13N (Mass of molecular ion: 99)
Source Temperature: 280 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
15.0 4.1
27.0 5.6
28.0 2.8
29.0 2.8
30.0 1.9
39.0 5.1
41.0 7.3
42.0 29.1
43.0 46.4
44.0 9.1
53.0 1.3
54.0 1.6
55.0 6.0
56.0 2.5
57.0 8.6
58.0 13.0
68.0 1.6
70.0 16.1
71.0 9.5
82.0 1.2
84.0 7.7
96.0 2.0
98.0 100.0
99.0 43.2
100.0 2.7
400 MHz in CDCl3
90 MHz in CDCl3
-
| 1H NMR |
399.65 MHz |
| C6 H13 N
|
0.05 ml : 0.5 ml CDCl3
|
| 1-methylpiperidine
|
 |
Assign. Shift(ppm)
A 2.33
B 2.234
C 1.586
D 1.41
|
Hz ppm Int.
929.69 2.327 94
893.07 2.235 1000
646.00 1.617 101
640.14 1.602 239
634.52 1.588 306
628.78 1.574 284
623.29 1.560 114
563.23 1.410 73
-
| 1H NMR |
89.56 MHz |
| C6 H13 N
|
0.05 ml : 0.5 ml CDCl3
|
| 1-methylpiperidine
|
|
Assign. Shift(ppm)
A 2.33
B 2.232
C 1.59 to 1.48
|
Hz ppm Int.
213.38 2.383 53
212.94 2.378 53
208.88 2.333 89
203.31 2.271 85
200.00 2.234 1000
197.31 2.204 32
147.56 1.648 37
143.06 1.598 58
141.56 1.581 62
137.06 1.531 62
133.63 1.493 76
133.06 1.486 73
132.94 1.485 73
130.00 1.452 40
128.25 1.433 29
126.06 1.408 22
