反丁烯二酰氯(627-63-4)核磁圖(13CNMR)
分子式:C4H2Cl2O2
分子量: 152.96
InChI:InChI=1S/C4H2Cl2O2/c5-3(7)1-2-4(6)8/h1-2H/b2-1+
InChIKey: ZLYYJUJDFKGVKB-OWOJBTEDSA-N
Smiles:C(Cl)(=O)/C=C/C(Cl)=O
-

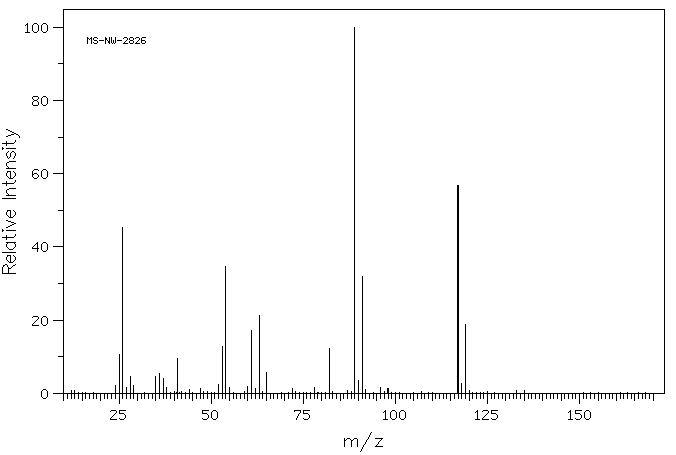

Mass
MS-NW-2826
fumaroyl dichloride
C4H2Cl2O2 (Mass of molecular ion: 152)
Source Temperature: 280 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
24.0 2.2
25.0 10.7
26.0 45.4
27.0 1.7
28.0 4.6
29.0 2.1
35.0 4.6
36.0 5.5
37.0 4.0
38.0 1.7
41.0 9.5
44.0 1.1
47.0 1.2
52.0 2.3
53.0 12.8
54.0 34.6
55.0 1.5
60.0 2.0
61.0 17.2
62.0 1.2
63.0 21.2
65.0 5.7
72.0 1.3
78.0 1.6
82.0 12.3
89.0 100.0
90.0 3.6
91.0 32.0
92.0 1.1
96.0 1.7
98.0 1.2
117.0 56.7
118.0 2.8
119.0 18.9
-

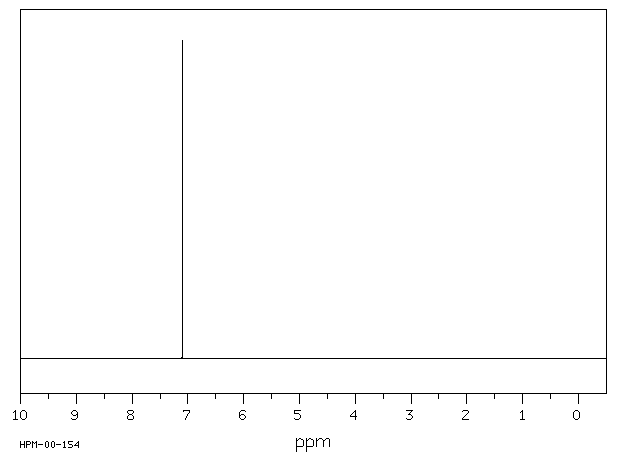

| 1H NMR |
300 MHz |
| C4 H2 Cl2 O2
|
0.05 ml : 0.5 ml CDCl3
|
| fumaroyl dichloride
|
 |
Parameter ppm Hz
D(A) 7.102
|
Hz ppm Int.
2130.60 7.102 1000
