富馬酰胺(627-64-5)質(zhì)譜(MS)
InChI:InChI=1S/C4H6N2O2/c5-3(7)1-2-4(6)8/h1-2H,(H2,5,7)(H2,6,8)/b2-1+
InChIKey: BSSNZUFKXJJCBG-OWOJBTEDSA-N
Smiles:C(N)(=O)/C=C/C(N)=O
-

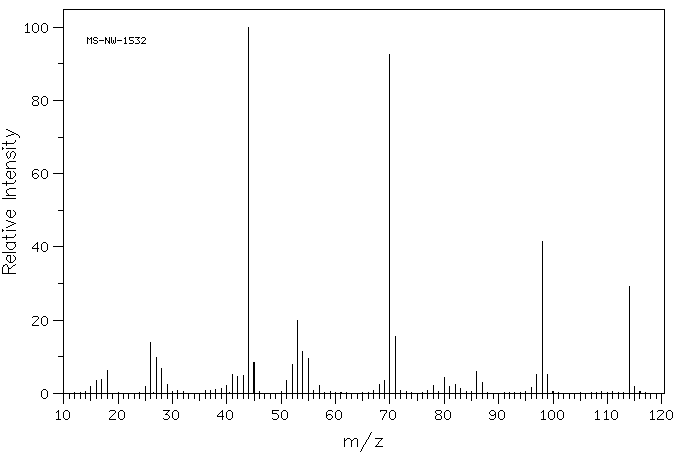

Mass
MS-NW-1532
fumaramide
C4H6N2O2 (Mass of molecular ion: 114)
Source Temperature: 240 °C
Sample Temperature: 290 °C
Direct, 75 eV
15.0 2.0
16.0 3.4
17.0 3.8
18.0 6.3
25.0 1.9
26.0 13.8
27.0 9.7
28.0 6.8
29.0 2.4
38.0 1.1
39.0 1.4
40.0 2.2
41.0 5.1
42.0 4.5
43.0 4.8
44.0 100.0
45.0 8.4
51.0 3.5
52.0 8.0
53.0 20.0
54.0 11.3
55.0 9.4
57.0 2.1
68.0 2.3
69.0 3.6
70.0 92.5
71.0 15.5
78.0 2.2
80.0 4.2
81.0 2.0
82.0 2.3
83.0 1.3
86.0 6.0
87.0 3.1
96.0 1.6
97.0 5.2
98.0 41.5
99.0 5.2
114.0 29.1
115.0 1.9
