6279-86-3

甲烷三羧酸三乙酯(6279-86-3)核磁圖(¹HNMR)

產(chǎn)品名稱:甲烷三羧酸三乙酯

CAS:6279-86-3

分子式:C10H16O6

分子量: 232.23

InChI:InChI=1S/C10H16O6/c1-4-14-8(11)7(9(12)15-5-2)10(13)16-6-3/h7H,4-6H2,1-3H3

InChIKey: AGZPNUZBDCYTBB-UHFFFAOYSA-N

Smiles:C(C(=O)OCC)(C(=O)OCC)C(=O)OCC

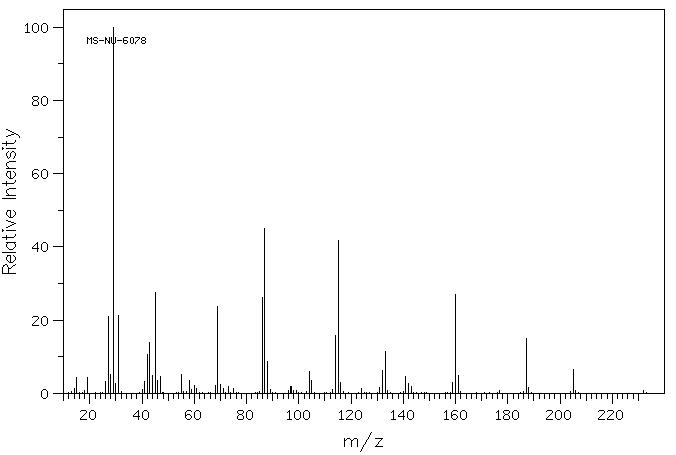

Mass

MS-NW-6078
triethyl methanetricarboxylate
C10H16O6            (Mass of molecular ion:    232)

   Source Temperature: 260 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV

      14.0       1.2
      15.0       4.4
      19.0       4.3
      26.0       3.2
      27.0      21.0
      28.0       5.1
      29.0     100.0
      30.0       2.6
      31.0      21.3
      40.0       1.0
      41.0       3.2
      42.0      10.5
      43.0      13.9
      44.0       5.0
      45.0      27.5
      46.0       3.6
      47.0       4.5
      55.0       5.1
      58.0       3.6
      59.0       1.0
      60.0       2.2
      61.0       1.2
      68.0       2.2
      69.0      23.8
      70.0       2.4
      71.0       1.2
      73.0       1.9
      75.0       1.3
      86.0      26.2
      87.0      45.0
      88.0       8.8
      89.0       1.1
      97.0       1.8
     104.0       6.0
     105.0       3.5
     113.0       1.0
     114.0      15.7
     115.0      41.8
     116.0       2.9
     124.0       1.4
     131.0       1.5
     132.0       6.3
     133.0      11.4
     141.0       4.5
     142.0       2.7
     143.0       2.0
     159.0       2.9
     160.0      27.1
     161.0       4.8
     187.0      14.9
     188.0       1.7
     205.0       6.5

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₁₀ H₁₆ O₆	0.05 ml : 0.5 ml CDCl₃
triethyl methanetricarboxylate

    Assign.     Shift(ppm)

      A             4.410
      B             4.279
      C             1.304

     Hz     ppm     Int.

   1762.70   4.411    342
   1720.83   4.306    249
   1713.75   4.289    604
   1706.54   4.271    605
   1699.34   4.253    243
    533.33   1.335     46
    528.20   1.322    658
    521.12   1.304   1000
    513.79   1.286    620

in CDCl3
