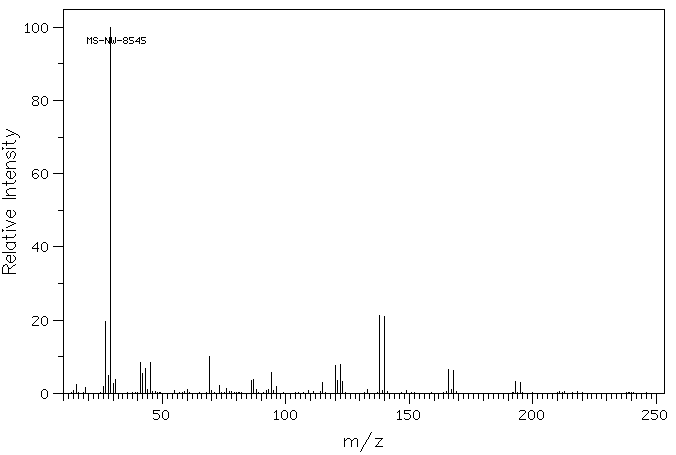

Mass

MS-NW-8545
diethyl bromomalonate
C7H11BrO4           (Mass of molecular ion:    238)

   Source Temperature: 260 °C
   Sample Temperature: 140 °C
   Reservoir, 75 eV

      15.0       2.3
      19.0       1.6
      26.0       1.9
      27.0      19.5
      28.0       4.9
      29.0     100.0
      30.0       2.7
      31.0       3.9
      41.0       8.3
      42.0       5.4
      43.0       6.8
      44.0       1.0
      45.0       8.5
      60.0       1.1
      69.0      10.2
      73.0       2.2
      76.0       1.4
      86.0       3.4
      87.0       3.9
      88.0       1.1
      93.0       1.0
      94.0       5.7
      96.0       1.8
     115.0       2.9
     120.0       7.6
     121.0       3.5
     122.0       8.0
     123.0       3.2
     133.0       1.0
     138.0      21.4
     140.0      20.9
     166.0       6.5
     167.0       1.1
     168.0       6.3
     193.0       3.3
     195.0       3.1

Assign. Shift(ppm) A 4.853 B 4.296 C 1.317

     Hz     ppm     Int.

   1939.82   4.854    514
   1727.91   4.324    246
   1720.83   4.306    610
   1713.62   4.288    633
   1706.54   4.271    271
    539.31   1.350     25
    533.81   1.336    657
    526.73   1.318   1000
    519.53   1.300    685
