4-氯-2,5-二甲氧基硝基苯(6940-53-0)核磁圖(1HNMR)
分子式:C8H8ClNO4
分子量: 217.61
InChI:InChI=1S/C8H8ClNO4/c1-13-7-4-6(10(11)12)8(14-2)3-5(7)9/h3-4H,1-2H3
InChIKey: ORLPGMKKCAEWOW-UHFFFAOYSA-N
Smiles:C1(Cl)=CC(OC)=C([N+]([O-])=O)C=C1OC
-

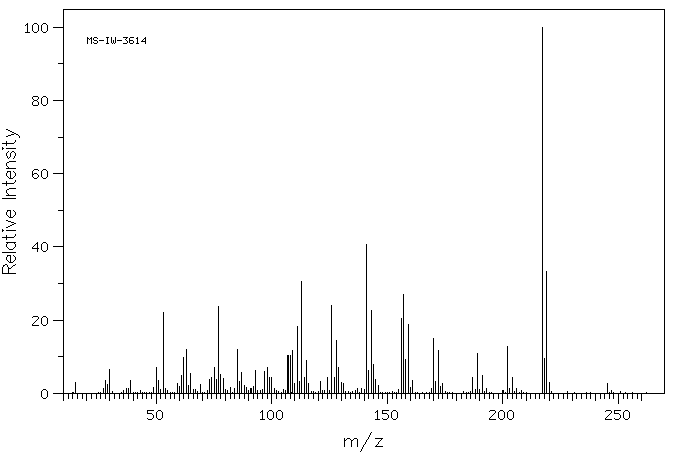

Mass
MS-IW-3614
1-chloro-2,5-dimethoxy-4-nitrobenzene
C8H8ClNO4 (Mass of molecular ion: 217)
Source Temperature: 220 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
15.0 3.1
27.0 1.2
28.0 3.4
29.0 2.5
30.0 6.6
37.0 1.2
38.0 1.3
39.0 3.5
49.0 1.5
50.0 7.2
51.0 3.5
52.0 1.0
53.0 22.0
54.0 1.2
59.0 2.7
60.0 2.0
61.0 5.0
62.0 9.9
63.0 12.1
64.0 2.1
65.0 5.3
66.0 1.1
67.0 1.1
69.0 2.3
73.0 3.7
74.0 4.2
75.0 7.1
76.0 3.8
77.0 23.6
78.0 5.1
79.0 4.0
80.0 1.0
82.0 1.7
84.0 1.2
85.0 12.1
86.0 3.3
87.0 5.6
88.0 2.2
89.0 1.5
91.0 1.2
92.0 2.0
93.0 6.3
96.0 1.1
97.0 6.1
98.0 7.1
99.0 4.4
100.0 4.3
101.0 1.3
105.0 1.1
107.0 10.4
108.0 10.3
109.0 11.6
110.0 2.8
111.0 18.4
112.0 3.2
113.0 30.5
114.0 4.3
115.0 8.9
116.0 2.7
121.0 3.2
124.0 4.4
126.0 24.1
127.0 4.2
128.0 14.4
129.0 7.0
130.0 2.9
131.0 2.8
137.0 1.2
139.0 1.2
140.0 1.0
141.0 40.8
142.0 6.2
143.0 22.6
144.0 8.0
145.0 3.9
146.0 2.2
155.0 1.0
156.0 20.4
157.0 27.1
158.0 9.3
159.0 18.7
160.0 1.7
161.0 3.4
169.0 1.2
170.0 15.0
171.0 3.2
172.0 11.7
173.0 1.9
174.0 2.7
187.0 4.2
188.0 1.0
189.0 10.8
190.0 1.0
191.0 5.0
193.0 1.2
202.0 12.8
203.0 1.3
204.0 4.3
206.0 1.3
217.0 100.0
218.0 9.6
219.0 33.4
220.0 3.1
245.0 2.7
