2-甲基-4-硝基咪唑(696-23-1)質(zhì)譜(MS)
InChI:InChI=1S/C4H5N3O2/c1-3-5-2-4(6-3)7(8)9/h2H,1H3,(H,5,6)
InChIKey: FFYTTYVSDVWNMY-UHFFFAOYSA-N
Smiles:C1(C)NC([N+]([O-])=O)=CN=1
-

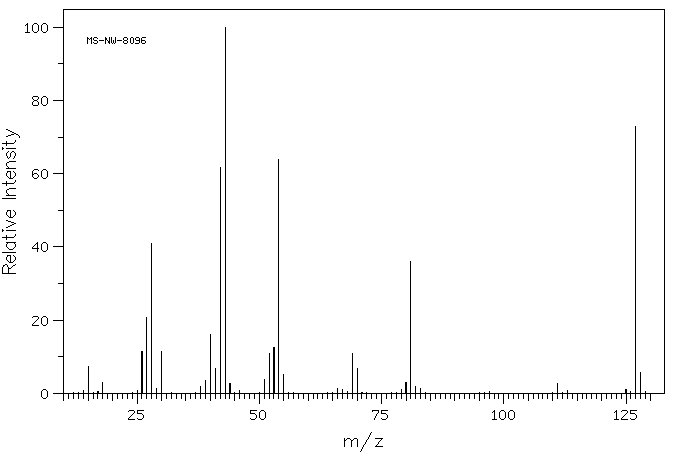

Mass
MS-NW-8096
2-methyl-5-nitroimidazole
C4H5N3O2 (Mass of molecular ion: 127)
Source Temperature: 190 °C
Sample Temperature: 150 °C
Direct, 75 eV
15.0 7.4
18.0 3.0
26.0 11.4
27.0 20.7
28.0 40.9
29.0 1.2
30.0 11.5
38.0 2.0
39.0 3.5
40.0 16.2
41.0 6.8
42.0 61.8
43.0 100.0
44.0 2.8
51.0 3.9
52.0 11.0
53.0 12.4
54.0 63.8
55.0 5.1
66.0 1.3
67.0 1.0
69.0 10.9
70.0 6.9
79.0 1.0
80.0 2.9
81.0 35.9
82.0 2.0
83.0 1.4
111.0 2.6
125.0 1.1
127.0 72.9
128.0 5.8
