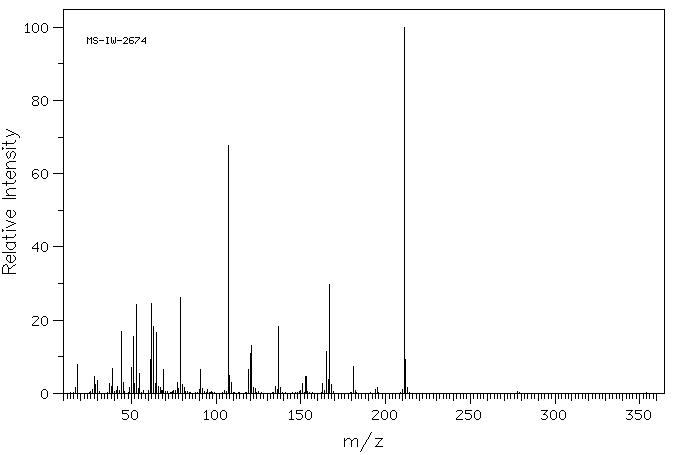

Mass

MS-IW-2674
6-nitro-1,3-benzodioxole-5-carboxylic acid
C8H5NO6             (Mass of molecular ion:    211)

   Source Temperature: 160 °C
   Sample Temperature: 150 °C
   Direct, 75 eV

      17.0       1.5
      18.0       7.9
      27.0       1.0
      28.0       4.5
      29.0       2.4
      30.0       3.6
      37.0       2.7
      38.0       2.0
      39.0       6.9
      42.0       1.8
      44.0      17.0
      45.0       3.1
      49.0       1.7
      50.0       7.1
      51.0      15.5
      52.0       2.7
      53.0      24.3
      54.0       1.3
      55.0       5.3
      61.0       9.3
      62.0      24.6
      63.0      18.3
      64.0       2.7
      65.0      16.6
      66.0       1.8
      67.0       1.5
      69.0       6.5
      77.0       3.1
      78.0       1.4
      79.0      26.1
      80.0       2.4
      81.0       1.6
      90.0       1.1
      91.0       6.5
      92.0       1.2
      95.0       1.0
     107.0      67.7
     108.0       5.0
     109.0       3.1
     119.0       6.5
     120.0      10.9
     121.0      13.1
     122.0       1.5
     123.0       1.3
     135.0       1.9
     136.0       1.0
     137.0      18.2
     138.0       1.5
     151.0       2.8
     153.0       4.6
     163.0       2.7
     165.0      11.3
     166.0       3.7
     167.0      29.7
     168.0       2.5
     181.0       7.4
     194.0       1.0
     195.0       1.7
     210.0       1.1
     211.0     100.0
     212.0       9.3
     213.0       1.6
