雙環(huán)戊二烯(77-73-6)核磁圖(13CNMR)
InChI:InChI=1S/C10H12/c1-2-9-7-4-5-8(6-7)10(9)3-1/h1-2,4-5,7-10H,3,6H2
InChIKey: HECLRDQVFMWTQS-UHFFFAOYSA-N
Smiles:C1C2C(C3CC2C=C3)C=C1
-

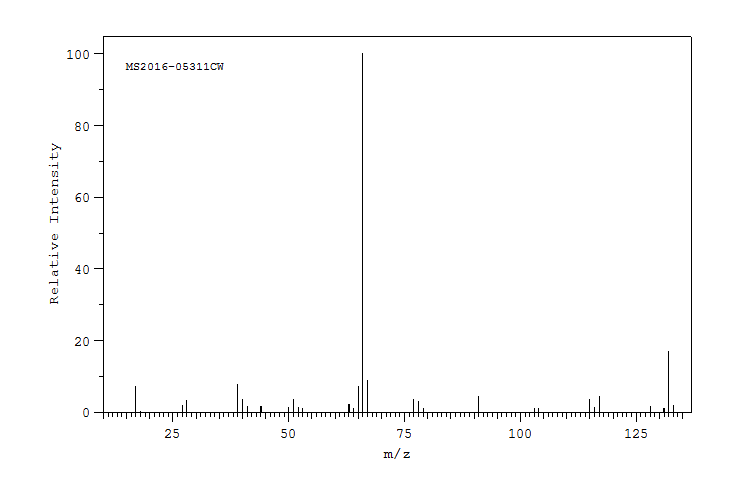

Mass
MS2016-05311CW
dicyclopentadiene
C10H12 (Mass of molecular ion: 132)
Source Temperature: 250 °C
Sample Temperature: 250 °C
Reservoir, 70 eV
17.0 7.3
27.0 2.0
28.0 3.4
39.0 7.7
40.0 3.7
41.0 1.7
44.0 1.5
50.0 1.3
51.0 3.5
52.0 1.2
53.0 1.1
63.0 2.2
64.0 1.1
65.0 7.2
66.0 100.0
67.0 8.9
77.0 3.7
78.0 3.0
79.0 1.1
91.0 4.5
103.0 1.0
104.0 1.0
115.0 3.6
116.0 1.2
117.0 4.4
128.0 1.5
131.0 1.1
132.0 17.0
133.0 1.9
