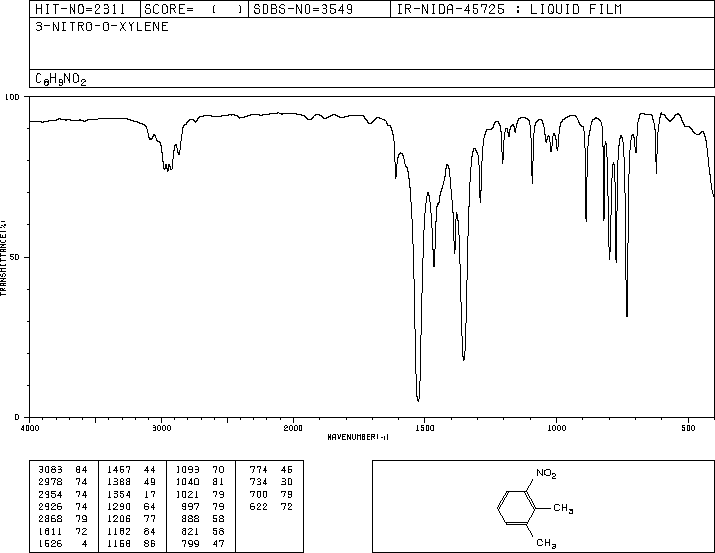

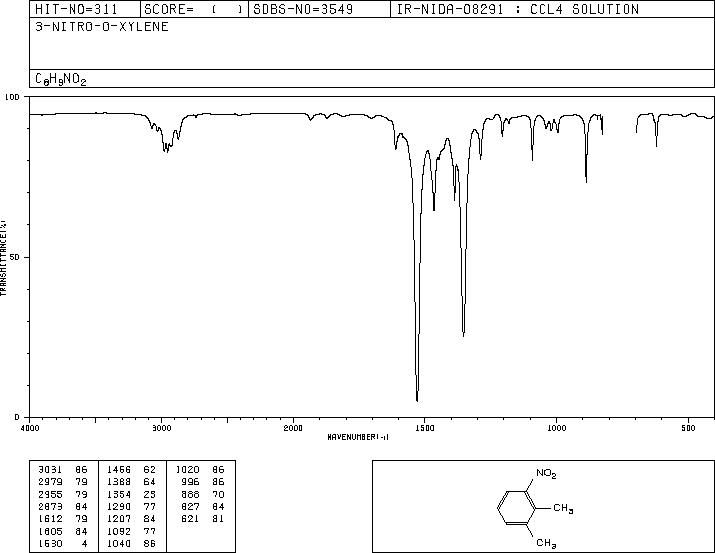

3-硝基鄰二甲苯(83-41-0)紅外圖譜(IR1)
InChI:InChI=1S/C8H9NO2/c1-6-4-3-5-8(7(6)2)9(10)11/h3-5H,1-2H3
InChIKey: FVHAWXWFPBPFOS-UHFFFAOYSA-N
Smiles:C1(C)=CC=CC([N+]([O-])=O)=C1C
-

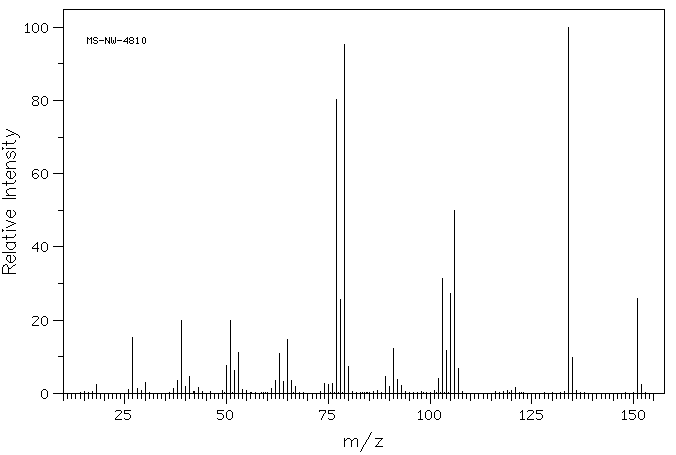

Mass
MS-NW-4810
3-nitro-o-xylene
C8H9NO2 (Mass of molecular ion: 151)
Source Temperature: 260 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
18.0 2.4
26.0 1.1
27.0 15.2
28.0 1.3
30.0 3.1
37.0 1.3
38.0 3.4
39.0 19.8
40.0 1.9
41.0 4.5
43.0 1.7
50.0 7.5
51.0 20.0
52.0 6.2
53.0 11.2
54.0 1.1
61.0 1.3
62.0 3.5
63.0 10.9
64.0 3.2
65.0 14.7
66.0 3.6
67.0 1.8
74.0 2.7
75.0 2.5
76.0 2.7
77.0 80.4
78.0 25.7
79.0 95.3
80.0 7.3
89.0 4.5
90.0 2.0
91.0 12.2
92.0 3.7
93.0 2.1
102.0 4.1
103.0 31.3
104.0 11.6
105.0 27.3
106.0 50.0
107.0 6.9
121.0 1.5
134.0 100.0
135.0 9.8
151.0 26.0
152.0 2.4
