846-63-9

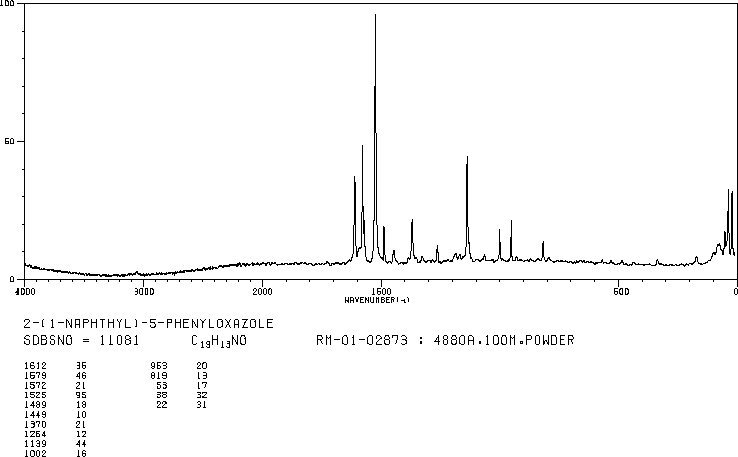

2-(1-萘基)-5-苯基惡唑(846-63-9)Raman光譜

產(chǎn)品名稱:2-(1-萘基)-5-苯基惡唑

CAS:846-63-9

分子式:C19H13NO

分子量: 271.31

InChI:InChI=1S/C19H13NO/c1-2-8-15(9-3-1)18-13-20-19(21-18)17-12-6-10-14-7-4-5-11-16(14)17/h1-13H

InChIKey: WWVFJJKBBZXWFV-UHFFFAOYSA-N

Smiles:O1C(C2=CC=CC=C2)=CN=C1C1=C2C(C=CC=C2)=CC=C1

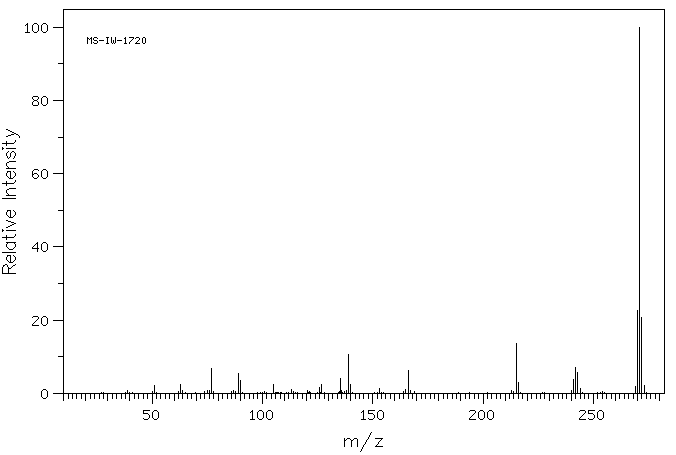

Mass

MS-IW-1720
2-(1-naphthyl)-5-phenyloxazole
C19H13NO            (Mass of molecular ion:    271)

   Source Temperature: 150 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      51.0       2.1
      63.0       2.3
      77.0       6.9
      89.0       5.4
      90.0       3.4
     105.0       2.4
     113.0       1.0
     126.0       1.6
     127.0       2.5
     135.5       4.1
     139.0      10.5
     140.0       2.4
     153.0       1.3
     165.0       1.1
     166.0       6.3
     215.0      13.7
     216.0       3.0
     241.0       3.7
     242.0       7.1
     243.0       5.7
     244.0       1.4
     269.0       1.9
     270.0      22.6
     271.0     100.0
     272.0      20.7
     273.0       2.2

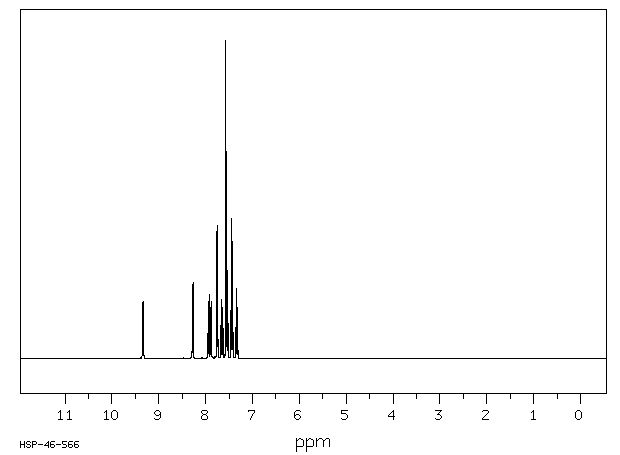

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₁₉ H₁₃ N O	0.040 g : 0.5 ml CDCl₃
2-(1-naphthyl)-5-phenyloxazole

    Assign.     Shift(ppm)

      A             9.335
      B             8.276
      C     *1      7.934
      D     *1      7.887
      E             7.748
      F             7.650
      G             7.566
      J             7.54
      K             7.438
      L             7.335

     Hz     ppm     Int.

   3735.50   9.347    172
   3734.59   9.345    176
   3726.96   9.326    179
   3726.04   9.324    180
   3311.92   8.288    221
   3310.70   8.285    233
   3304.60   8.269    237
   3303.38   8.266    239
   3175.51   7.946    180
   3167.27   7.926    200
   3156.28   7.898    149
   3155.67   7.897    162
   3154.91   7.895    152
   3148.19   7.878    169
   3147.43   7.876    179
   3146.82   7.874    172
   3102.42   7.763    321
   3101.20   7.760    398
   3099.21   7.755    114
   3094.94   7.745    207
   3094.02   7.742    417
   3093.41   7.741    315
   3092.80   7.739    351
   3090.97   7.735     60
   3066.25   7.673    103
   3064.88   7.669    107
   3059.39   7.656    146
   3057.86   7.652    184
   3056.18   7.648    109
   3050.84   7.634    142
   3049.32   7.630    132
   3023.83   7.567   1000
   3021.09   7.560    177
   3015.29   7.545    354
   3014.22   7.543    268
   3013.00   7.540    160
   3007.81   7.527    239
   3006.13   7.522    111
   2980.80   7.459    151
   2980.04   7.457    229
   2978.36   7.453     91
   2972.72   7.439    440
   2971.50   7.436    235
   2966.31   7.423    131
   2964.78   7.419    267
   2962.95   7.414     61
   2938.84   7.354     98
   2937.47   7.351    185
   2936.25   7.348    109
   2931.98   7.337     83
   2930.15   7.332    219
   2928.16   7.327     69
   2923.89   7.317     56
   2922.67   7.314     96
   2921.45   7.311     52

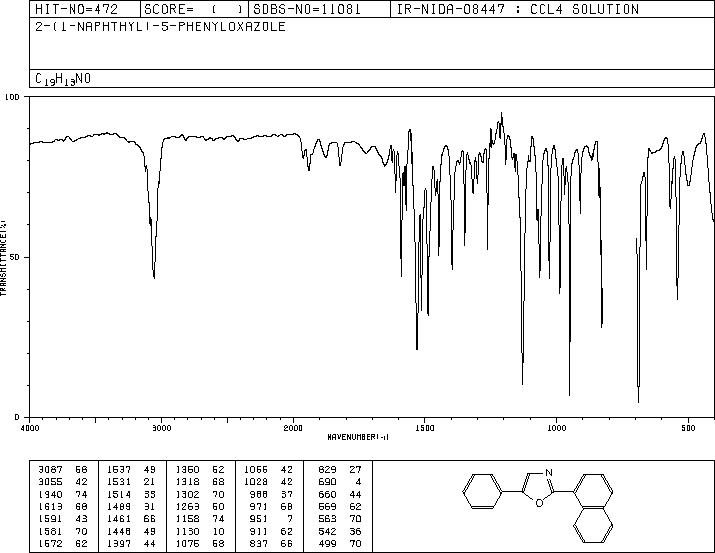

CCl4 solution
