1，7-辛二炔(871-84-1)質(zhì)譜(MS)
InChI:InChI=1S/C8H10/c1-3-5-7-8-6-4-2/h1-2H,5-8H2
InChIKey: DSOJWVLXZNRKCS-UHFFFAOYSA-N
Smiles:C#CCCCCC#C
-

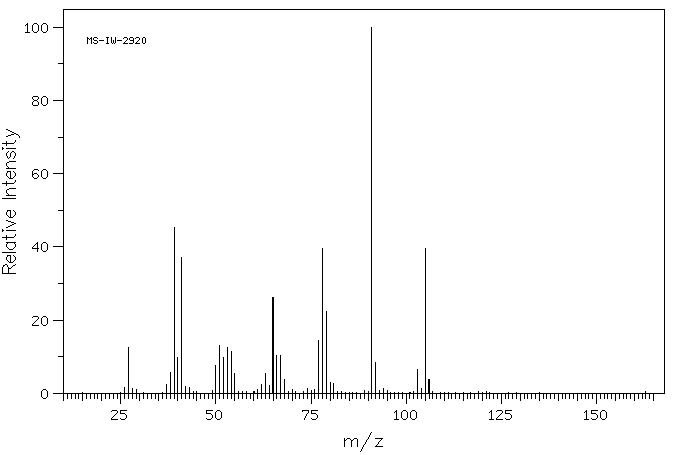

Mass
MS-IW-2920
1,7-octadiyne
C8H10 (Mass of molecular ion: 106)
Source Temperature: 200 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
26.0 1.7
27.0 12.5
28.0 1.4
29.0 1.1
37.0 2.4
38.0 5.8
39.0 45.3
40.0 9.7
41.0 37.2
42.0 1.8
43.0 1.5
50.0 7.5
51.0 13.1
52.0 9.7
53.0 12.4
54.0 11.5
55.0 5.4
61.0 1.0
62.0 2.3
63.0 5.5
64.0 2.1
65.0 26.3
66.0 10.4
67.0 10.4
68.0 3.8
70.0 1.0
74.0 1.3
76.0 1.1
77.0 14.5
78.0 39.5
79.0 22.3
80.0 2.9
81.0 2.6
91.0 100.0
92.0 8.4
94.0 1.4
103.0 6.6
104.0 1.3
105.0 39.7
106.0 3.7
