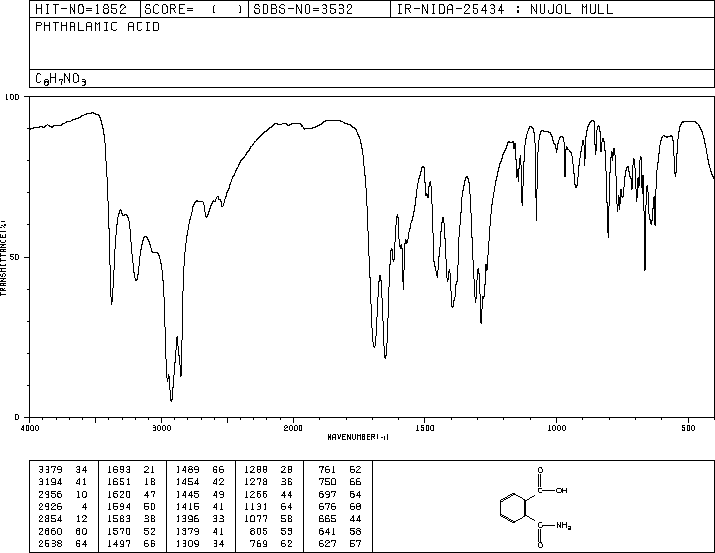

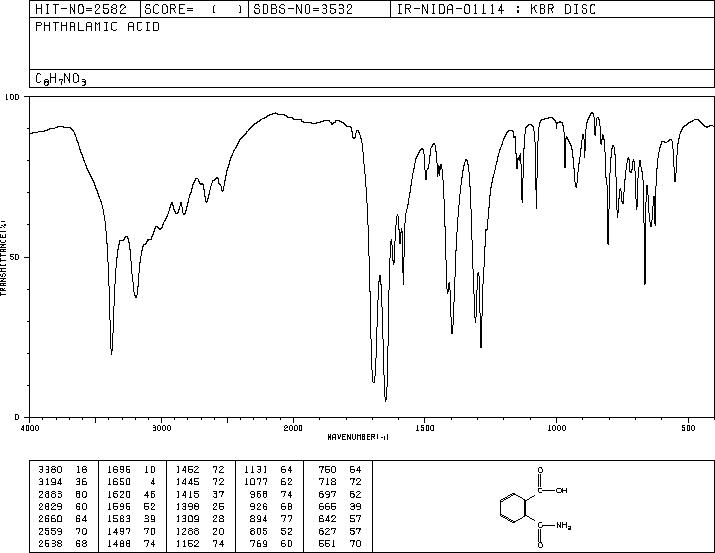

鄰甲酰胺苯甲酸(88-97-1)紅外圖譜(IR1)
InChI:InChI=1S/C8H7NO3/c9-7(10)5-3-1-2-4-6(5)8(11)12/h1-4H,(H2,9,10)(H,11,12)
InChIKey: CYMRPDYINXWJFU-UHFFFAOYSA-N
Smiles:C(O)(=O)C1=CC=CC=C1C(N)=O
-

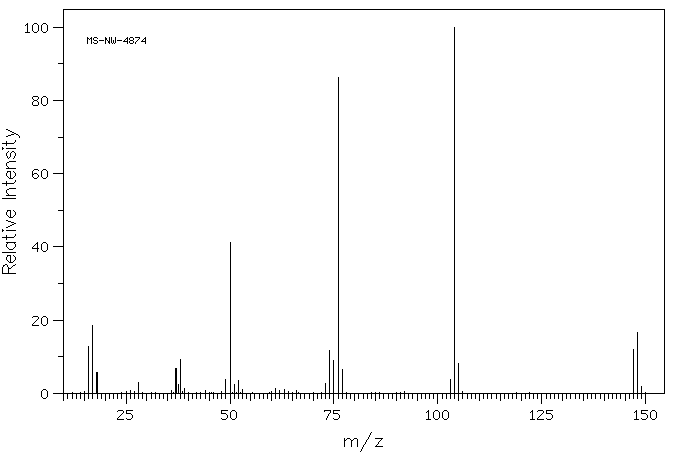

Mass
MS-NW-4874
phthalamic acid
C8H7NO3 (Mass of molecular ion: 165)
Source Temperature: 260 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
16.0 12.7
17.0 18.6
18.0 5.8
28.0 2.9
37.0 6.9
37.5 2.3
38.0 9.2
39.0 1.3
49.0 3.7
50.0 41.1
51.0 2.4
52.0 3.6
53.0 1.1
61.0 1.3
63.0 1.0
73.0 2.8
74.0 11.8
75.0 8.9
76.0 86.3
77.0 6.5
103.0 3.8
104.0 100.0
105.0 8.1
147.0 12.0
148.0 16.5
149.0 1.8
