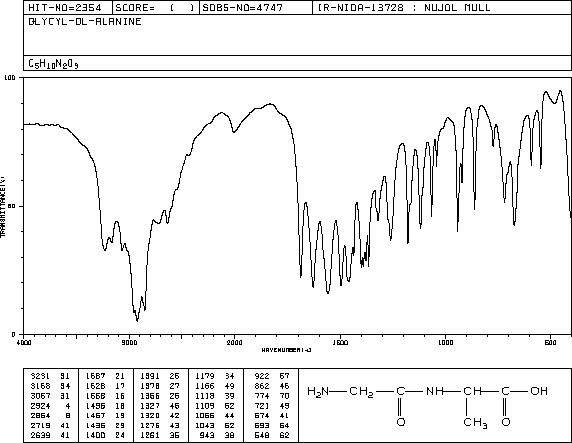

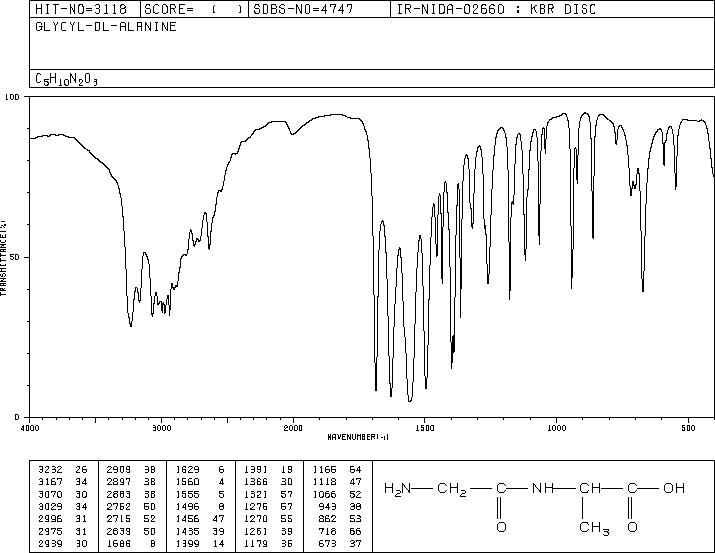

甘氨酰丙氨酸(926-77-2)紅外圖譜(IR1)
分子式:C5H10N2O3
分子量: 146.14
InChI:InChI=1S/C5H10N2O3/c1-3(5(9)10)7-4(8)2-6/h3H,2,6H2,1H3,(H,7,8)(H,9,10)/t3-/m0/s1
InChIKey: VPZXBVLAVMBEQI-VKHMYHEASA-N
Smiles:C(O)(=O)[C@H](C)NC(=O)CN
-

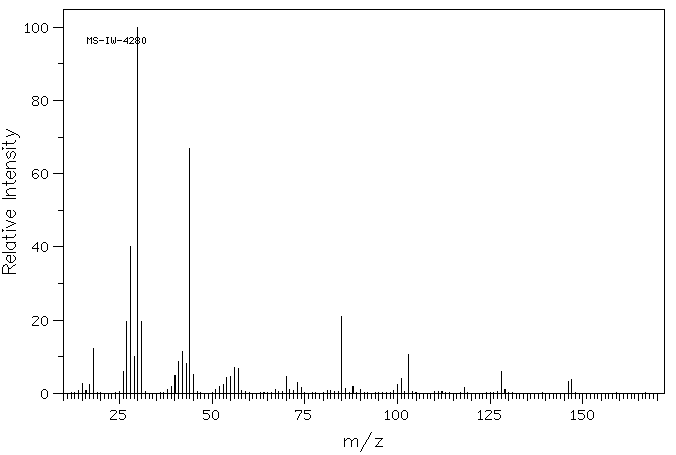

Mass
MS-IW-4280
glycyl-DL-alanine
C5H10N2O3 (Mass of molecular ion: 146)
Source Temperature: 220 °C
Sample Temperature: 230 °C
Direct, 75 eV
15.0 2.7
17.0 2.3
18.0 12.3
26.0 5.9
27.0 19.7
28.0 40.1
29.0 10.2
30.0 100.0
31.0 19.7
38.0 1.0
39.0 2.0
40.0 4.9
41.0 8.8
42.0 11.4
43.0 8.2
44.0 66.8
45.0 5.2
51.0 1.0
52.0 1.9
53.0 2.5
54.0 4.3
55.0 4.6
56.0 7.2
57.0 6.7
67.0 1.0
70.0 4.5
71.0 1.1
73.0 3.1
74.0 1.7
85.0 20.9
86.0 1.3
88.0 1.8
90.0 1.1
100.0 2.4
101.0 4.0
103.0 10.6
118.0 1.6
128.0 5.9
129.0 1.1
146.0 3.3
147.0 3.8
