N-羥乙基亞胺二乙酸(93-62-9)Raman光譜
InChI:InChI=1S/C6H11NO5/c8-2-1-7(3-5(9)10)4-6(11)12/h8H,1-4H2,(H,9,10)(H,11,12)
InChIKey: JYXGIOKAKDAARW-UHFFFAOYSA-N
Smiles:C(O)(=O)CN(CC(O)=O)CCO
-

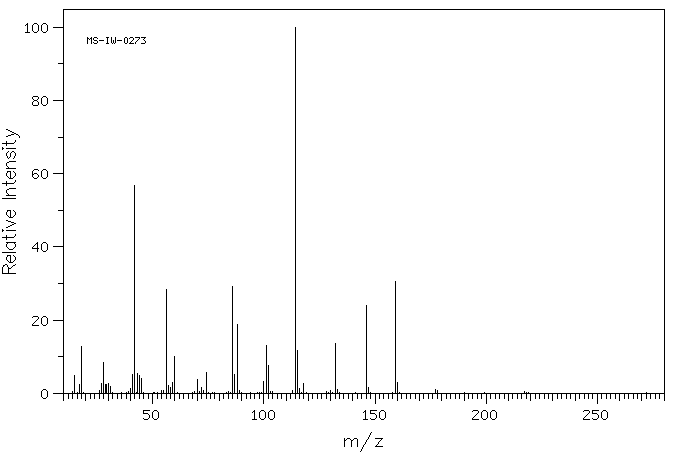

Mass
MS-IW-0273
((2-hydroxyethyl)imino)diacetic acid
C6H11NO5 (Mass of molecular ion: 177)
Source Temperature: 220 °C
Sample Temperature: 200 °C
Direct, 75 eV
15.0 4.8
17.0 2.3
18.0 12.8
27.0 2.7
28.0 8.4
29.0 2.3
30.0 2.6
31.0 1.9
40.0 1.2
41.0 5.2
42.0 56.9
43.0 5.5
44.0 5.0
45.0 4.1
56.0 28.5
57.0 2.2
58.0 1.6
59.0 2.9
60.0 10.0
70.0 3.8
72.0 1.6
74.0 5.8
86.0 29.2
87.0 5.1
88.0 18.7
100.0 3.2
101.0 13.1
102.0 7.6
114.0 100.0
115.0 11.6
116.0 1.2
118.0 2.6
132.0 13.6
133.0 1.0
146.0 24.1
147.0 1.5
159.0 30.6
160.0 3.1
177.0 1.1
