3,5-二硝基苯甲酰氯(99-33-2)質(zhì)譜(MS)
分子式:C7H3ClN2O5
分子量: 230.56
InChI:InChI=1S/C7H3ClN2O5/c8-7(11)4-1-5(9(12)13)3-6(2-4)10(14)15/h1-3H
InChIKey: NNOHXABAQAGKRZ-UHFFFAOYSA-N
Smiles:C(Cl)(=O)C1=CC([N+]([O-])=O)=CC([N+]([O-])=O)=C1
-

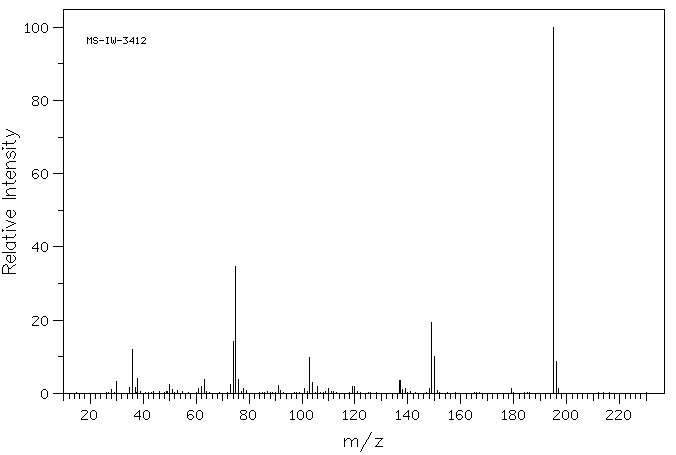

Mass
MS-IW-3412
3,5-dinitrobenzoyl chloride
C7H3ClN2O5 (Mass of molecular ion: 230)
Source Temperature: 210 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
28.0 1.0
30.0 3.3
35.0 1.7
36.0 12.0
37.0 1.6
38.0 4.0
50.0 2.5
51.0 1.1
61.0 1.2
62.0 1.8
63.0 3.8
73.0 2.5
74.0 14.2
75.0 34.7
76.0 3.9
78.0 1.2
91.0 2.2
101.0 1.2
103.0 9.8
104.0 2.9
106.0 2.0
110.0 1.3
119.0 1.9
120.0 2.0
137.0 3.6
138.0 1.0
139.0 1.2
148.0 1.2
149.0 19.4
150.0 10.1
179.0 1.2
195.0 100.0
196.0 8.7
197.0 1.3
