γ-松油烯(99-85-4)紅外圖譜(IR1)
InChI:InChI=1S/C10H16/c1-8(2)10-6-4-9(3)5-7-10/h4,7-8H,5-6H2,1-3H3
InChIKey: YKFLAYDHMOASIY-UHFFFAOYSA-N
Smiles:C1(C)CC=C(C(C)C)CC=1
-

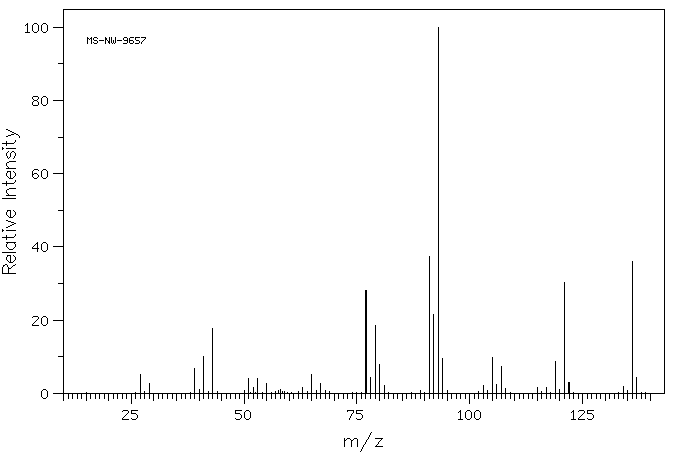

Mass
MS-NW-9657
1,4-p-menthadiene
C10H16 (Mass of molecular ion: 136)
Source Temperature: 260 °C
Sample Temperature: 150 °C
Reservoir, 75 eV
27.0 5.2
29.0 2.6
39.0 6.9
40.0 1.0
41.0 10.0
43.0 17.6
51.0 4.1
52.0 1.7
53.0 4.1
55.0 2.8
58.0 1.1
63.0 1.6
65.0 5.2
67.0 2.6
77.0 28.2
78.0 4.3
79.0 18.6
80.0 7.8
81.0 2.1
91.0 37.3
92.0 21.5
93.0 100.0
94.0 9.6
103.0 2.2
105.0 9.8
106.0 2.3
107.0 7.3
108.0 1.3
115.0 1.5
117.0 1.7
119.0 8.7
120.0 1.1
121.0 30.4
122.0 3.0
134.0 1.9
136.0 35.9
137.0 4.2
