1759-28-0

4-甲基-5-乙烯基噻唑(1759-28-0)核磁圖(¹HNMR)

產(chǎn)品名稱(chēng):4-甲基-5-乙烯基噻唑

CAS:1759-28-0

分子式:C6H7NS

分子量: 125.19

InChI:InChI=1S/C6H7NS/c1-3-6-5(2)7-4-8-6/h3-4H,1H2,2H3

InChIKey: QUAMMXIRDIIGDJ-UHFFFAOYSA-N

Smiles:S1C(C=C)=C(C)N=C1

¹HNMR

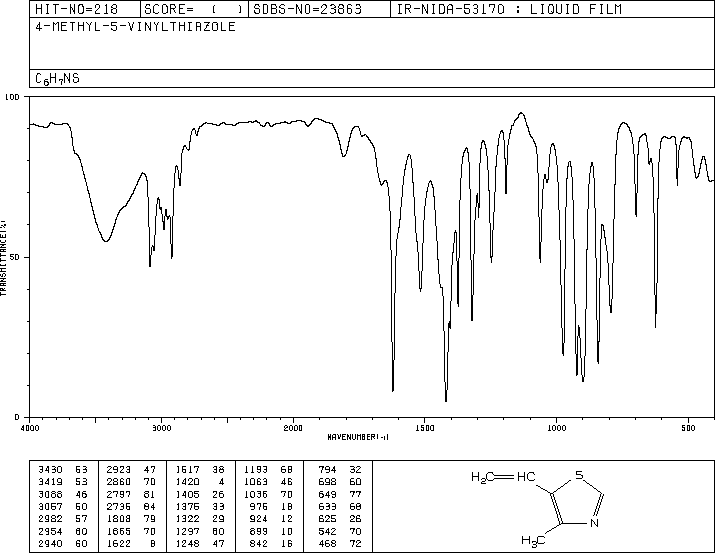

IR1

Raman

Mass

MS-IW-1304
4-methyl-5-vinylthiazole
C6H7NS              (Mass of molecular ion:    125)

   Source Temperature: 240 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV

      26.0       1.0
      27.0       3.7
      28.0       1.6
      37.0       1.0
      38.0       1.8
      39.0      10.2
      40.0       1.3
      41.0       1.1
      45.0      12.8
      47.0       1.1
      50.0       1.2
      51.0       2.0
      52.0       1.6
      53.0       6.1
      54.0       2.8
      58.0      33.4
      59.0       6.3
      60.0       1.8
      61.0       1.0
      62.0       1.1
      63.0       2.1
      65.0       4.8
      66.0       1.1
      69.0       6.1
      70.0       4.1
      71.0       7.0
      72.0       1.4
      80.0       2.9
      81.0       1.4
      83.0       4.2
      84.0       3.3
      85.0       1.4
      92.0       2.5
      97.0      42.6
      98.0      24.5
      99.0       3.7
     100.0       1.2
     124.0      14.6
     125.0     100.0
     126.0       9.0
     127.0       5.2

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₆ H₇ N S	0.05 ml : 0.5 ml CDCl₃
4-methyl-5-vinylthiazole

    Assign.     Shift(ppm)

      A             8.534
      B             6.770
      C             5.454
      D             5.233
      E             2.440

     Hz     ppm     Int.

   3410.77   8.535    324
   2720.46   6.808    136
   2719.85   6.806    130
   2709.59   6.780    144
   2708.86   6.779    139
   2703.37   6.765    145
   2702.64   6.763    142
   2692.38   6.737    148
   2691.65   6.736    144
   2188.23   5.476    257
   2171.14   5.433    242
   2097.05   5.248    246
   2086.06   5.220    239
    975.34   2.441   1000

liquid film
