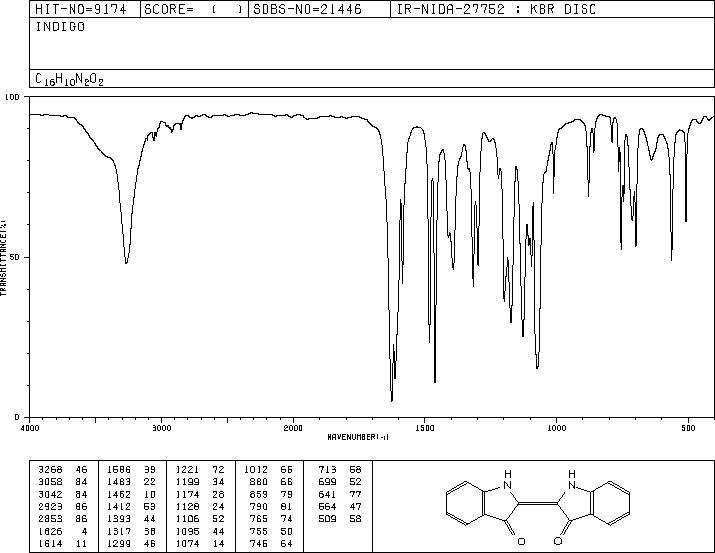

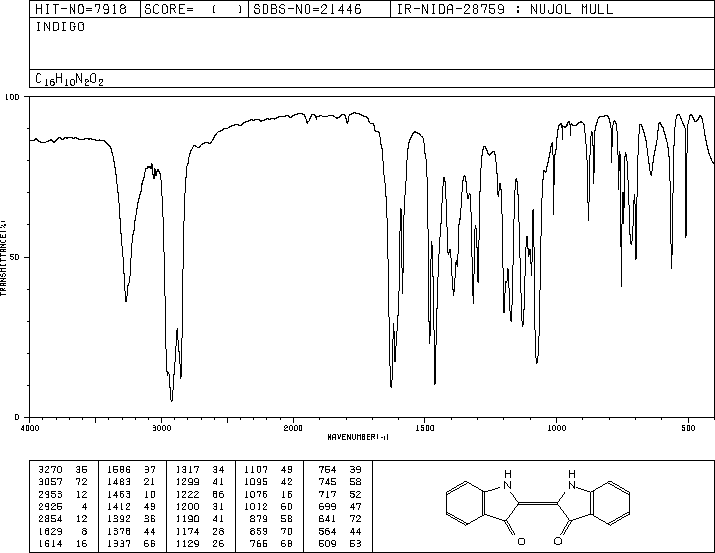

靛藍(lán)(482-89-3)紅外圖譜(IR1)
分子式:C16H10N2O2
分子量: 262.26
InChI:InChI=1S/C16H10N2O2/c19-15-9-5-1-3-7-11(9)17-13(15)14-16(20)10-6-2-4-8-12(10)18-14/h1-8,17-18H
InChIKey: COHYTHOBJLSHDF-UHFFFAOYSA-N
Smiles:N1C2=C(C=CC=C2)C(=O)C1=C1C(=O)C2=C(N1)C=CC=C2
-

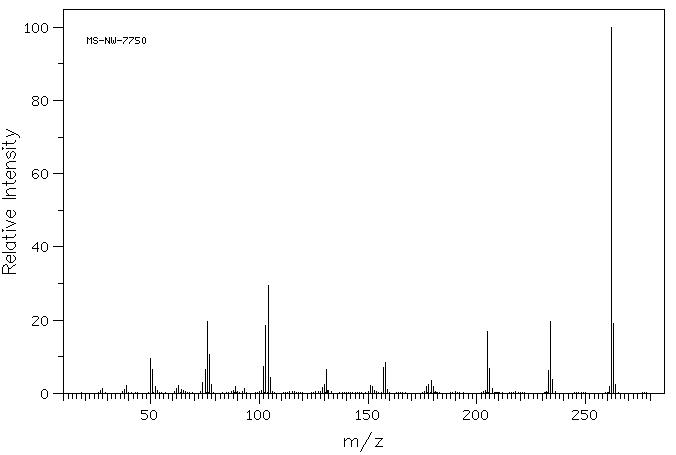

Mass
MS-NW-7750
Indigo
C16H10N2O2 (Mass of molecular ion: 262)
Source Temperature: 190 °C
Sample Temperature: 190 °C
Direct, 75 eV
28.0 1.2
38.0 1.0
39.0 2.1
50.0 9.5
51.0 6.6
52.0 1.8
62.0 1.2
63.0 2.1
64.0 1.1
74.0 3.1
75.0 6.5
76.0 19.5
77.0 10.5
78.0 2.5
89.0 1.8
93.0 1.4
102.0 7.4
103.0 18.5
104.0 29.4
105.0 4.2
129.0 1.6
130.0 2.4
131.0 6.6
151.0 2.1
152.0 1.8
157.0 7.1
158.0 8.5
159.0 1.0
177.0 1.8
178.0 2.3
179.0 3.4
180.0 1.8
205.0 16.8
206.0 6.7
207.0 1.2
233.0 6.2
234.0 19.7
235.0 3.7
261.0 1.9
262.0 100.0
263.0 19.2
264.0 2.3
