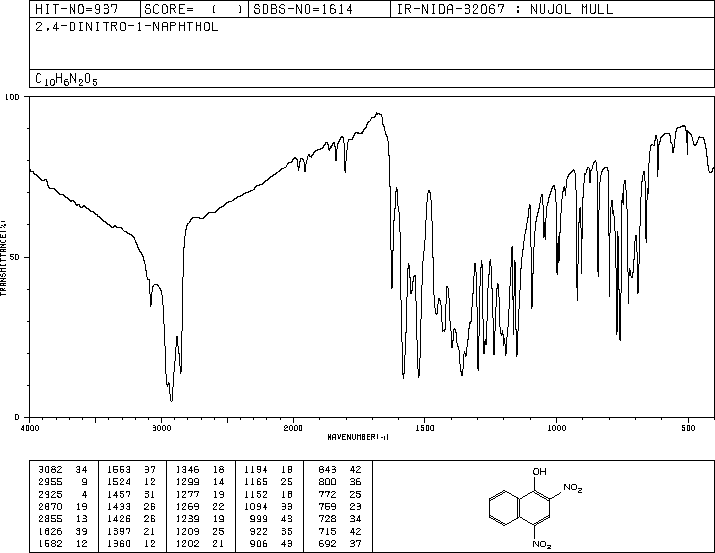

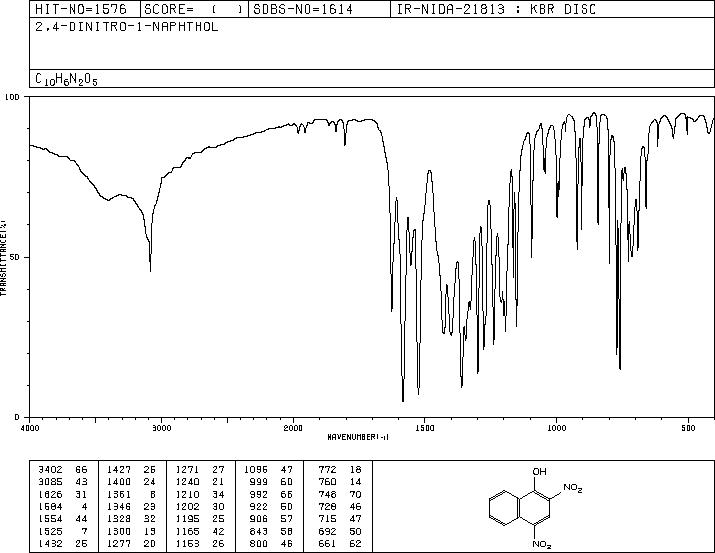

馬休黃(605-69-6)紅外圖譜(IR3)
分子式:C10H6N2O5
分子量: 234.16
InChI:InChI=1S/C10H6N2O5/c13-10-7-4-2-1-3-6(7)8(11(14)15)5-9(10)12(16)17/h1-5,13H
InChIKey: FFRBMBIXVSCUFS-UHFFFAOYSA-N
Smiles:C1(O)=C2C(C=CC=C2)=C([N+]([O-])=O)C=C1[N+]([O-])=O
-
Mass
MS-NW-0348
2,4-dinitro-1-naphthol
C10H6N2O5 (Mass of molecular ion: 234)
Source Temperature: 180 °C
Sample Temperature: 130 °C
Direct, 75 eV
17.0 1.3
18.0 6.5
27.0 1.3
28.0 2.8
30.0 8.6
38.0 1.4
39.0 6.6
41.0 1.7
43.0 1.8
44.0 1.4
50.0 4.9
51.0 6.3
52.0 1.4
53.0 4.8
55.0 1.6
57.0 1.4
61.0 1.9
62.0 6.2
63.0 15.9
64.0 2.8
65.0 1.4
69.0 1.1
74.0 6.0
75.0 10.0
76.0 6.8
77.0 3.3
78.0 1.1
85.0 1.3
86.0 5.9
87.0 8.1
88.0 11.0
89.0 4.6
90.0 1.7
98.0 1.8
99.0 1.2
100.0 1.9
101.0 16.4
102.0 11.2
103.0 4.1
104.0 3.1
105.0 3.2
110.0 1.2
111.0 1.1
112.0 1.4
113.0 33.2
114.0 20.0
115.0 6.4
116.0 1.5
117.0 1.1
118.0 1.2
127.0 2.5
128.0 1.2
129.0 16.7
130.0 6.6
131.0 2.0
132.0 1.2
141.0 24.8
142.0 14.4
143.0 4.1
144.0 1.2
145.0 1.2
146.0 1.2
157.0 18.5
158.0 5.7
159.0 3.9
160.0 1.0
171.0 3.0
172.0 2.3
187.0 22.8
188.0 4.8
189.0 2.5
202.0 1.2
204.0 4.7
206.0 2.5
217.0 19.2
218.0 5.2
234.0 100.0
235.0 11.9
236.0 1.7
